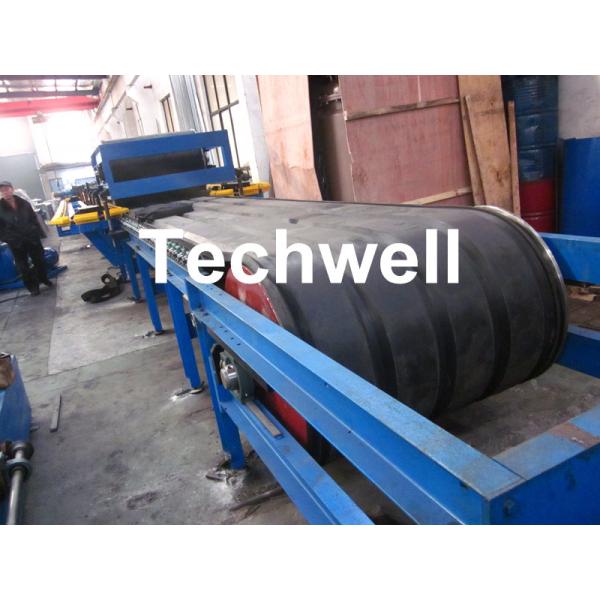

    PU Insulated Sandwich Panel Forming Machine With Double Belt Drive Type , Cooling System

    Ask Lasest Price
    Brand Name : TECHWELL
    Model Number : TW-GTM
    Certification : CE, ISO
    Price : Contact us
    Payment Terms : 40% T/T in advance, 60% T/T before shipment
    Supply Ability : 20 Sets
    Delivery Time : 55-65 Working Days
    • Product Details
    • Company Profile

    PU Insulated Sandwich Panel Forming Machine With Double Belt Drive Type , Cooling System

    PU Insulated Sandwich Panel Forming Machine With Double Belt Drive Type, Cooling System


    PU Sandwich Panel Technical Specifications



    1. Uncoiler


    1. Motor Power: 3.0KW

    2. Hydraulic Power: 2.2Kw

    3. Raw Material: color steel sheet, aluminum sheet

    4. Inner Diameter of Coil: 500-600mm

    5. Outer Diameter of Coil: 1200mm

    6. Coil Weight: 10T

    7. Sheet Thickness: 0.4-0.8mm

    8. Coil Width: 1250mm


    2. Coil Car


    1. Hydraulic cylinder lift stroke: up panel 0.5m, down panel 0.5m

    2. Coil car stroke: 2.5m

    3. Pressure of hydraulic system: 6.3Mpa


    3. Two Sets of Steel Sheet Transverse Cutting Machines


    1. Hydraulic

    2. Cut steel sheet according to certain length

    3. Two sets of PVC film covering device which applies the PVC film onto the steel sheet


    4. Roll Forming Machine


    1. Motor power: up panel 4Kw, down panel 7.5Kw

    2. Rolling Speed: 0-12m/min

    3. Roller Material: 40Cr, surface chrome coated, thickness 0.05mm

    4. The way of width adjust: straight track, silk pole, reducer motor adjustable

    5. Width adjustable range: 600-1250mm

    6. Sheet Thickness: 0.4-0.8mm


    5. Pre-heating Room

    1. Temperature sensor: hot couple

    2. Temperature adjustment: automatic control by temperature control equipment

    3. Hot air motor: 18.5KW

    4. Heat Type: heated by electricity and air circulate

    5. Hot air heater: 200KW


    6. Doouble Belt Machine

    1. Effective working length: 24m

    2. Length & Width of double belt: 1400mm x 267mm

    3. Double belt material: Alloy steel


    7. Band Saw Cutting Machine

    1. Outline dimension of band saw cutting machine: 5500mmx5000mmx 3000mm

    2. Run speed of band saw: 1000-1500rpm

    3. Rotate diameter of band saw: 550mm

    4. Cutting speed of band saw: 50m/min-1000m/min

    5. Width of band saw: 30mm


    Main Components


    • Decoiler
    • Steel sheet transverse shear device and Film-covering machine
    • Roll forming machine
    • PU foaming machine
    • Double belt conveyor
    • Auto tracking cutter
    • Panel cooling machine
    • Auto stacker
    • Packing machine
    • Electrical control system

    Reference Profile Drawing



    More Machine Pictures
