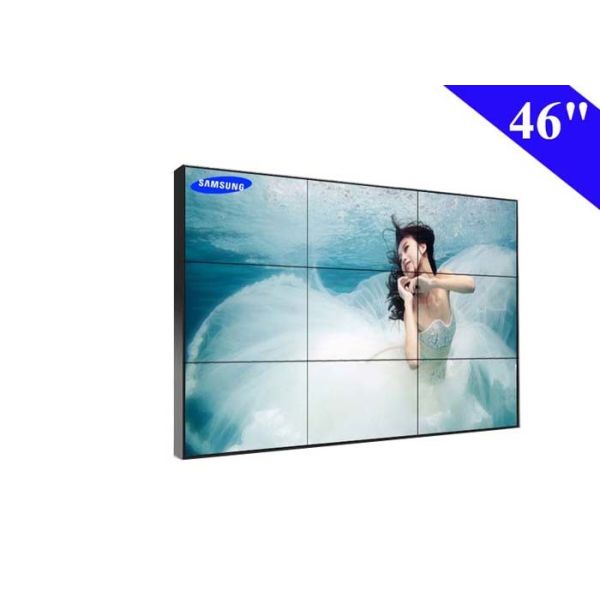

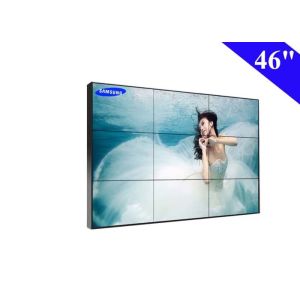

HD Display 3x3 LCD DID video wall 46 inch 5.3mm seamless tv wall
With Samsung
1, Main Features :
1), Original Samsung commercial grade lcd video wall display panel
46 inch,
2), 700nits brightness.
3), Full HD physical resolution 1920x1080
4), 5.3mm Ultra narrow bezel, high quality ,Practical ,good vision
effect.
5), Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV.
6), HD video wall unit--- High brightness,high contrast,High gamut
.
7), Flexible structure design ---easy installation
,extensible,arbitrary combination.
8), Stable performance,suitable working for a long time.
2, Why you choose us ?
1). What is LED/LCD Video Wall System?
LED/LCD Video Wall is integrating multiple signal decoding unit,a
liquid crystal drive unit,power supply unit and other parts, can
flexible and easily form a large screen display system.which widely
used in many fields, like : stadium, exhibition, advertisement
playing, and television station, stock market, traffic center and
so on.
2), How can you guarantee the quality of this Products?
Our factory have over 12 years produce experience.All of the
products are professional, high quality, artistic design and
competitive price. Felehoo people always attach great importance to
quality controlling from the very beginning to the very end. We
focus on every detail We also offer professional technology and
after-sale services.
3), Why is your price some time a little more expensive than
others?
Yep, we use 100% Original A+ Grade TFT Screen and chips ,good
material. Ensure that it more stability, and check the products
attentively.If you still tell me that just need the cheapest price
and don't care any quality. Ok, tell us.But then we are not for the
poor quality of responsible.
4), Everybody say it's good quality, so how to prove, how can I
trust one and who can I trust?
We are never hope to do just one business,we are prefer to a
long-term cooperation. I know you also don't like change different
suppliers,you are looking for the honest supplier. Maybe I can't
promise you that is the cheapest price in global, but i can tell
you we try our best to offer you the best price to make you always
WIN customers and electronic field!So we are very glad to if you
are sincerely want to buy. Our factory have the confidence to do
your fixed suppliers. So let me know your target price and which
product you need for so that I can recommend the appropriate type
for you, and I will do my utmost to offer you a perfect order.
thank your trust!
3, Product Specification
| Panel Specification |
| Model No | VD-D3D460CH |
| Panel Size | 5.3MM |
| Aspect Ratio | 16 : 9 |
| Active Display Area | 1018.08(W) x 572.67(H) |
| Backlight | LED |
| Max Resolution Support | 1920x1080(Max) |
| Color | 16.7M |
| Brightness(nits) | 700nits |
| Contrast | 3000 : 1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | <6ms |
| Life(hrs) | >50,000(hrs) |
| Video Wall Controller(Built-in each screen) |
| VGA input | 1 |
| DVI input | 1 |
| HDMI Input | 1 |
| Composite Video input | 2(BNC x 2) |
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC X 3) |
| Composite Video Output | 2(BNC X 2) |
| S-video | 2(BNC X 2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen (Matrix is optional) | Support Picture in Picture(PIP/POP) |
| Video System |
| Color System | PAL/NTSC/SECAM |
| HDTV Mode | 480P, 576P, 720P, 1080P |
| OSD Display(Menu Language) | Chinese/English |
| Power |
| Power supply | AC 100V ~ 240V, 50/60Hz |
| Maximum Power Consumption | <250W |
| Standby Power Consumption | <3W |
| Temperature |
| Working Temperature | 0° ~ 50° |
| Storage Temperature | 20° ~ 60° |
| Working Humidity | 20%~80% |
| Storage Humidity | 20%~80% |
| Installation System |
| Installation | With wall bracket for each single unit lcd |
| Gross Weight | 25kg |
| Dimension | 1025.65X579.84X126.73 mm |
| Accessories |
| Split LCD Unit | Yes |
| Bracket | Yes(wall bracket for each single unit lcd) |
| Power cable | Yes |
| Remote controller | Yes |
| Video wall controller | Yes(Built-in each screen) |
| Splicing software | Yes |
If you have any other questions, please contact our salesman as
soon as possible.
