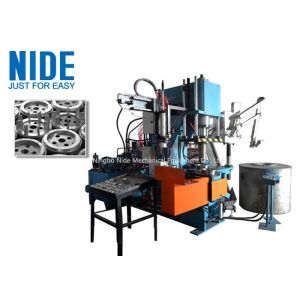

Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine

    Buy cheap Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine from wholesalers

    Buy cheap Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine from wholesalers
    • Buy cheap Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine from wholesalers
    • Buy cheap Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine from wholesalers
    • Buy cheap Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine from wholesalers
    • Buy cheap Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine from wholesalers

    Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-90T
    Certification : CCC
    Payment Terms : L/C, T/T
    Delivery Time : 45 working days
    Supply Ability : 45 sets per year
    Price : negotiable
    • Product Details
    • Company Profile

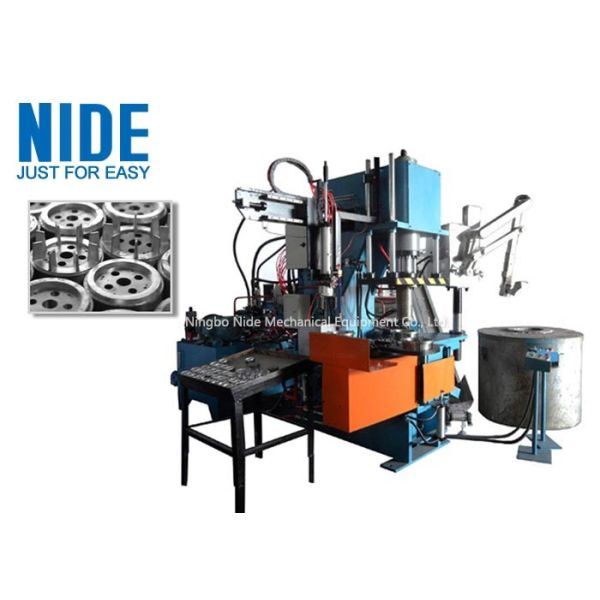

    Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine

    Highly Efficient Armature Casting Machine Aluminum Liquid Die Casting Machine
    The conventional rotor die casting machine requires about 3-5 operators for one machine. However, for our rotor die casting machine, one people can take care of more than one machines. It only takes one day for green hands becoming practician. It greatly reduced labor cost.The tooling change is also fast. it takes about 10min to change mould.
    Unlike the conventional die casting machine, our machine doesn't need asbestine cup to keep the temperature and demould. The adpotion of automatic solid lubricating system and demould oil adding system makes the whole production smokeless , tasteless , pollution free and clean.
    it adpots a C type structure. During production, there’s no need for operator to work under the projection area. Meanwhile, operator does not need to handling the heavy tooling which might occur body injury, and the machine has aluminium anti spatter design to prevent the aluminium liquid from spraying and cause injury.
    This armature die casting machine is consisted of main machine and hydraulic electronic control system .
    1.Main cylinder mould locking system
    2. injection system
    3. residual aluminum(sprue)pushing and conveying mechanism
    4. automatic demould oil spraying
    5.lower mould cooling system
    6. lubricating system of puncher pin and molten aluminum container
    7.Lower mould rotation system
    8. Mould assembly system
    9.Hydraulic system and electronic control system
    10. Aluminum liquid loading system
    11.Mechanical arm
    12. Loading system

    Technical Parameters

    NO.ItemUnit90T
    1,Main cylinder:
    1main cylinder mold lock forceKN500
    2main cylinder mold lock travelmm400
    2,Injecting cylinder:
    1Injecting cyliner travelmm150
    2Injecting cylinder injecting forceKN300
    3Injecting force(Min-Max)KN70-300
    4capacityL20
    5aluminum depot OD(Max)mm75-90
    6punching head OD(Max)mm75-90
    7aluminum depot capacity(Max)KG1.8
    8Injection punching head travel distancemm55
    9cycle timeS15-20
    10Rotor ODmmMAX85
    11Rotor stack heightmmMAX90
    3,Motor and pump:
    1Pump motor powerKW7.5
    2Divider motor powderKW0.75
    3Oil pump (plunger pump)L40Y
    4,Machine dimesion:
    1Main frame(L*W*G)mm

    1800*1800

    *2500

    2assembly of oil tank and electric appliance(L*W*G)mm

    1500*1000

    *900

    3turntable ODmm1000
    5,Cooling pump specification:
    1Submersible pump powerKW1.5
    2Submersible pump rate of flowM3/H5
    3Submersible pump water pressureMPa0.4

    Remark: the max pressure of this machine is 25Mpa

    Submersible pump power : 220/380V Optional


    Armature die casting machine production process diagram:
    Click below picutre to view the vidio.
