0.6MM Thickness FR4 V Cut PCB Depanelizer Large Stainless Steel Platform

Ask Lasest Price
Brand Name :	YES
Model Number :	YESM
Certification :	CE ISO
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	300 sets per month
Delivery Time :	1-5 days after payment received

Add to Cart

Product Details
Company Profile

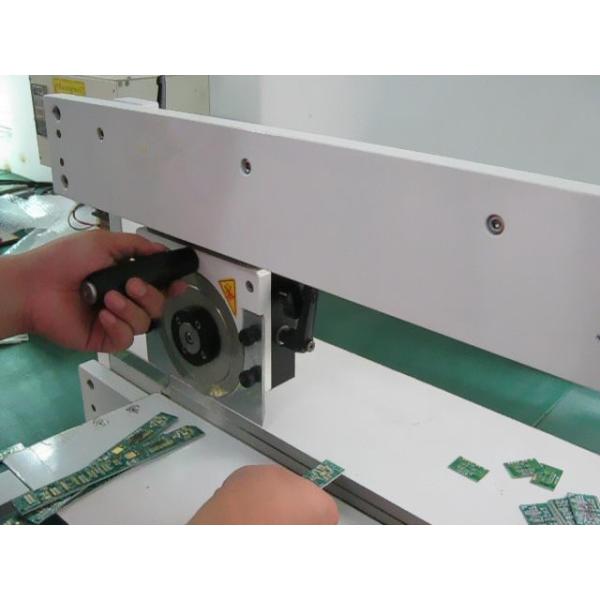

0.6MM Thickness FR4 V Cut PCB Depanelizer Large Stainless Steel Platform

0.6MM Thickness FR4 V Cut PCB Depanelizer Large Stainless Steel Platform

v-cut pcb separator Feature:

1. Separating speed is adjusted by a rotary knob

2. Handle Intermittent scoring or cut-outs

3. Board with projected component can be cut precisely

4. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable

5. Optional PCB conveyor belt to remove finished board

6. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out

Specification of Manual PCB Depaneling

Model	YES460
Max. PCB singulation length	460mm
PCB singulation Thickness	0.6-3.5mm
PCB singulation speed control	by hand
PCB singulation machine size	787x400x436mm
PCB singulation machine weight	30Kg

Model	YES720
Max. PCB singulation length	720mm
PCB singulation thickness	0.6-3.5mm
PCB singulation speed control	by hand
PCB singulation machine size	1027x400x436mm
PCB singulation machine weight	45kg

Best service for Manual PCB Depaneling

1. Engineers available to service machinery oversea.	Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery.	As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend.
3. Effective customer service. pcb router machine	All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4. One year warranty for the machines except accessories. b router machine	Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
Our mission:	Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
Our Vision:	PCB industry to become the world's leading solution providers PCB separator. pcb router machine
