FW Electric Hydraulic Solenoid Valve , Hydraulic Solenoid Directional Control Valves

    Buy cheap FW Electric Hydraulic Solenoid Valve , Hydraulic Solenoid Directional Control Valves from wholesalers

    Buy cheap FW Electric Hydraulic Solenoid Valve , Hydraulic Solenoid Directional Control Valves from wholesalers
    • Buy cheap FW Electric Hydraulic Solenoid Valve , Hydraulic Solenoid Directional Control Valves from wholesalers

    FW Electric Hydraulic Solenoid Valve , Hydraulic Solenoid Directional Control Valves

    Ask Lasest Price
    Brand Name : NBSANMINSE
    Model Number : FW
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C,T/T
    Supply Ability : 10000PCS
    Delivery Time : 5-30days
    • Product Details
    • Company Profile

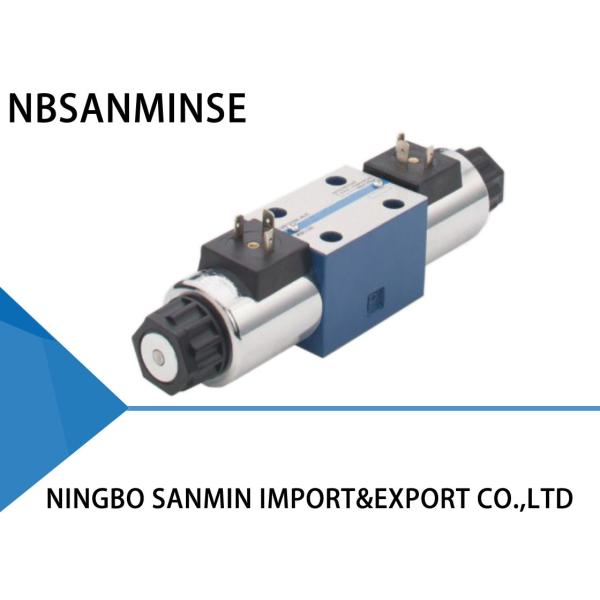

    FW Electric Hydraulic Solenoid Valve , Hydraulic Solenoid Directional Control Valves

    FW Electric Hydraulic Solenoid Valve , Hydraulic Solenoid Directional Control Valves


    Technical specification


    Specification0203

    Working

    Pressure ( MPa )

    Oil Ports P. A . B31 . 531 . 5
    Oil ports T1010
    Max . Flow ( L / min )80120
    Working fluidMineral oil ; Phosphate - ester
    Fluid Temp . ( ℃ )- 20 ~ 70
    Viscosity ( mm ² / s )2 . 8 ~ 100

    Working

    Voltage (V)

    DC1224
    AC110V / 50Hz220V / 50Hz
    Max . Switch Frequency ( T / h)15000 ( DC )7200 ( AC )
    Insulation gradeIP65
    Weight ( kg )Single solenoid1 . 45 ( DC )1 . 4 ( AC )5 . 1 ( DC )4 . 3 ( AC )
    Double Solenoids1 . 95 ( DC )1 . 9 ( AC )6 . 7 ( DC )5 . 1 ( AC )
    CleanlinessThe maximum allowable cleanliness of the oil should be according to 9th degree of Standard Nas1638 . It is suggested that the minimum filter rating should be β 10 ≥ 75 .

    Why choose us


    1: Various style for each products and completely series pneumatic products .
    2: Large stock for fast shipping .
    3: High quality with competitive price .

    4: Reliable quality assured and active after-sell service
    5: One year quality guarantee


    FAQ


    Q: How much is our minimum order quantity ?
    A: Our minimun quantity is 1 Piece .


    Q: Could you offer the free samples ?
    A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


    Q: what types of products you can make ?
    A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .


    Q: Do your company have specialized technical personnel ?
    A: Design as your requirements,and have QC for make 100% inspection
