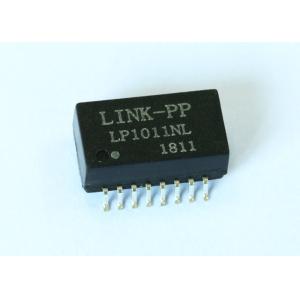

    Buy cheap HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules from wholesalers

    Buy cheap HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules from wholesalers
    • Buy cheap HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules from wholesalers
    • Buy cheap HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules from wholesalers

    HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : HN16614CG
    Certification : UL,RoHS,Reach,ISO
    Price : $0.06-$3.2
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 3KK/Month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    HN16614CG | LP1011NL 10/100 Base-T Single Port Lan Isolation Transformer For Modules

    HN16614CG | LP1011NL 10/100 Base-T Single Port Transformer For Modules
    • PULSE TRANSFORMER FOR GENERAL PURPOSE APPLICATION(S)
    • l IEEE 802.3 Ethernet Compatible,10/100 Base-TX
    • Surface Mountable(Miniature size)
    • Coil Structure: Toroidal
    • 10/100 Base-T Transformer Modules
    • LP1011NL Equivalent Specifications
    • Pulse HN16614CG Cross PN LP1011NL

    SPECIFICATIONS

    Mfr Package DescriptionROHS COMPLIANT
    REACH CompliantYes
    EU RoHS CompliantYes
    StatusActive
    Transformer TypeLINK-PP made In China
    ApplicationGENERAL PURPOSE
    Isolation Voltage1500.0 V
    Manufacturer SeriesHN16614CG Equivalent
    Mounting FeatureSURFACE MOUNT
    Number of Functions1
    Operating Temperature-Min0.0 Cel
    Operating Temperature-Max70.0 Cel
    Primary Inductance350.0 µH
    Turns Ratio (Np:Ns)1:1
    Height6.20 mm
    Length12.70 mm
    Width9.30 mm
    Additional FeatureHEIGHT DIM INCLUDE TERMINALS ALSO

    HN16614CG | LP1011NL 10/100 Base-T Single Port Transformer For Modules
