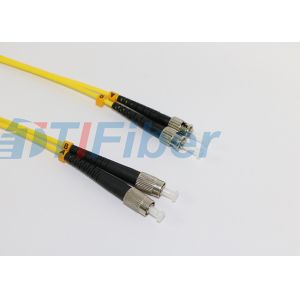

    FC to ST Singlemode Duplex optical jumper cord 3.0MM Low Insertion Loss

    Ask Lasest Price
    Brand Name : TTI Fiber
    Model Number : FC-ST
    Certification : ISO 9001, ISO 14001, REACH, ROHS, CE and CPR certificates
    Price : Negotiable
    Payment Terms : T/T, , PayPal, Monthly
    Supply Ability : 7000pcs/Day
    Delivery Time : 2-4 work days
    • Product Details
    • Company Profile

    FC to ST Singlemode Duplex optical jumper cord 3.0MM Low Insertion Loss

    FC to ST Singlemode Duplex optical jumper cord 3.0MM Low Insertion Loss

    Features:

    • Low Insertion Loss
    • High Return Loss
    • Good Repeatability
    • Good Exchangeability
    • High Temperature Stability

    Applications:

    • Telecommunications
    • Local Area Network (LAN)
    • Fiber to the home (FTTH)
    • Optical patch panels
    • Testing Instruments

    Specification:


    ParameterSingle ModeMulti Mode
    BasicFiber connectorFC, SC, LC, ST, MU, MTRJ, MPO
    Ferrule End-facePCUPCAPCUPC
    Insertion Loss≤0.2dB≤0.2dB≤0.3dB≤0.3bB
    Return Loss≥50dB≥55dB≥60dB≥35dB
    Ceramic Ferrule Specification125.5um concentricity deviations:<=1um127um concentricity deviations:<=3um
    Suitable Fiber9/125um50/125um,62.5/125um
    End-face GeometryRadius of Curvature7~25mm5~12mmN/A
    Fiber Protrusion≤50nm≤100nmN/A
    Fiber Under Cut≤100nm≤100nmN/A
    Apex offset≤50um
    MechanicalExchangeability≤0.2dB
    Salt Spray≤0.1dB
    Drop≤0.2dB(1.5M, 5 drops)
    VibrationIL ≤0.2dB(550Hz, 1.5mm)
    Repeatability≤ 0.1dB(1000 times)
    Durability> 1000 times
    Operating Temperature-40°C ~ +85°C

    Packing:


    One piece per PE bag with stick label (we could add customer's logo in the label.)


    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
