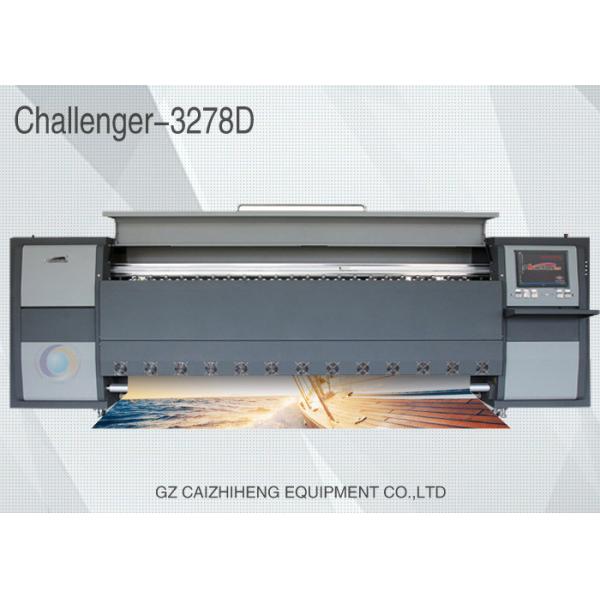

Intelligent Solvent Wide Format Inkjet Printer Aluminum Challenger
3278D
Product Description
1. Equipped with industrial piezo printhead which comes with 510
nozzles,printing width of 71.8mm, and 720dpi printing resolution.
2. 8pcs Seiko heads printing, the standard output achieves
109sqm/hr
3. Individual color purging minmizes the waste of the ink
4. 3 way intelligent heater helps bring more vivid output
5. The entire printing platform and the girder are made of the
alloy-aluminum which is more strong and flat
| Model | 3278D |
| Printhead | Drop on demand Piezo Head(SPT510-50PL) |
| Mumber of Printhead | 8 Heads |
| Maximun Print Width | 3,200mm(125.98”) |
| Print Speed | Draft 2Pass 157m2/hr |
| Standard 3Pass 109m2/hr |
| Quality 3Pass 91m2/hr |
| High Quality 4Pass 70m2/hr |
| Compensation 6Pass 46m2/hr |
| Media | Max.width | 3,300mm(129.92') |
| Max.Weight | 80kg |
| Type | Frontlit,Backlit,Vinyl,Polyester,WindowFilm,Mesh,Leather,Backlit
Film,Blue Back Paper… |
| Thickness | 4mm(Max.) |
| Heating System | 5 way intelligent heater |
Auto Media Feeding& Take-up System | Equipped |
| Ink | Type | Solvent Ink (C,M,Y,K) |
| Capacity | 1L or 5L per Color Main Tank |
| Auto Cleaning System | Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping
System |
| Print Interface | USB 2.0 |
| Power Specification | AC 220V/230V 50Hz/60Hz Printing: 660W Heater: 6900W |
| Operational Environment | Temperature: 20°C-28°C Humidity: 40%-60% |
| Compatible RIP Software | Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maintop |
Dimension &Weight | Machine | L5080mm X W1040mm X H1670mm 913kg |
| Packae | L5250mm X W1210mm X H1950mm 1300kg |
Features
1. Seiko Instrument Group SPT print head, 510 nozzles per print
head
2. The voltage of the print head is able to adjust automatically
depending on the temperature. This will
solve the problem on nozzle clogging under huge temperature change.
3. The function of skipping white space is added to increase
productivity.
4. The adjustment of bi-direction, step and carriage moving speed
can be modified during printing.
5. Edge feather function can blur the pass line and feather pass
edge.
6. Well designed alloy-aluminum girder is installed to decrease the
noise during printing.
Achieve the perfect quiet working environment.
7. Photoprint / Maintop / Wasatch software provide user-friendly
interface and handy function with
two types of printing.
8. 100% single color black is used on printing black text to avoid
mixture of color.
9. Control system has the function of resuming printing after the
power is cut off. This helps you to save
unnecessary loss of cost.
10. The powerful suction fans equipped under the printing platform
to avoid the collision between the carriage and the media, high
resolution can be obtained.
