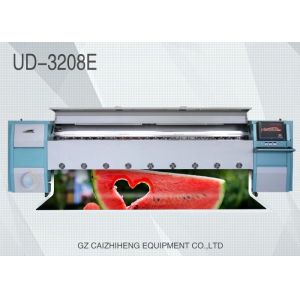

Vinyl Solvent Printing Machine UD-3208E Large Format Solvent Inkjet
Printer
Why Choose Our Large Format Printer Phaeton UD-3208E ?
- Auto Cleaning and Individual Positive Pressure Cleaning
- Advanced Media Tension Feeding System
- Excellent Mechanical Structure and Humanization Design.
- Low ink Detecting System.
- Front, Meddile, Rear Three Stage Heating System.
Description:
| MODEL | UD-3208E |
| Printhead SPT510/35PL | SPT510-35PL |
| Number of printhead | 8 Heads |
| Maximum print width | 3,200mm |
| Print Speed (m2/h) | Print mode | Standard output(m2/h) |
| D | 2 PASS 76 |
| S | 3 PASS 51 |
| Q | 4 PASS 34 |
| HQ | 6 PASS 26 |
| C | - |
| Ink | Type: | Solvent Ink / ECO Solvent Ink |
| Color : | Double 4 Color (C,M,Y,K) |
| Capacity: | 1L or 5L per Main Tank of Each Color |
| Ink Supply System | Low Ink Dectector, Auto or Manual Ink Supply
System |
| Media Width | Maximum 3,300mm |
| Media Type | Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc. |
| Auto Media Feeding System | Equipped (Max. Media Weight 80kg) |
| Auto Cleaning System | Individual Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System |
| Pre-heating & Drying System | Equipped |
| Clamp | Equipped |
| Print Interface | USB 2.0 |
| Printhead Height | 2 to 6 mm from Media |
| RIP Software | Maintop, Ultraprint, Photoprint, Wasatch, Topaz |
| Input Power | AC 220V, 50Hz/60Hz |
| Machine Dimension / N.W | L4, 786 x W930 x H1,350mm / 724KG |
| Package Dimension / G.W | L4, 980 x W1,140 x H1,640mm / 1064KG |
About the printer
1 . Seiko Instrument Group SPT printhead, 510 nozzles per
printhead.
2 . The voltage of the printhead is able to adjust automatically
depending on the temperature. This will solve the problem on nozzle
clogging under huge temperature change.
3 . The function of skipping white space is added to increase
productivity.
4 . The adjustment of bi-direction, step and carriage moving speed
can be modified during printing.
5 . Edge feather function can blur the pass line and feather pass
edge.
6 . Well designed alloy-aluminum girder is installed to decrease
the noise during printing. Achieve the perfect quiet working
environment.
7 . Photoprint / Maintop / Wasatch software provide user-friendly
interface and handy function with two types of printing.
8 . 100% single color black is used on printing black text to avoid
mixture of color.
9 . Control system has the function of resuming printing after the
power is cut off. This helps you to save unnecessary loss of cost.
10 . The powerful suction fans equipped under the printing platform
to avoid the collision between the carriage and the media, high
resolution can be obtained
Why Customers Select Us:
- We are professional in digital printer, printing inks, and spare
parts of printers.
- We have professional engineers who have more than ten years
experience to help you solve all kinds of questions.
- We have good after-sale service, one year warranty, and deliver
with good package and fast speed.
- If you have any problems, our engineers can service oversea, and
help you solve your questions.
- We have a big market and a lot of customers all over the world.
- Our annual sales are large, because we do it well.
About us:
GZ CAIZHIHENG EQUIPMENT CO.,LTD is founded in 2009. Our
companyrapidly grow up and develop fast. We have own testing,
selling and after-sale service teamwork for good printing ink.
GZ CAIZHIHENG CO.,LTD solvent ink have own brand “BEYOND BEST”,
after three years ofcontinuous efforts and promotion. We export
more than hundreds of tons inks per year at present.
Our main product:
Solvent Printer, ECO Solvent Printer, Water Based Printer,
Sublimation Printer in brand Phaeton, Infiniti, Galaxy, Challenger,
Leyenda.
Printer Photos
