WPC Board Construction Template Production Line / Extruder /
Plastic Machine
Quick detail:
The System configuration of wpc construction templates production
line
1. The main twin screw extruder
2. WPC door board mould

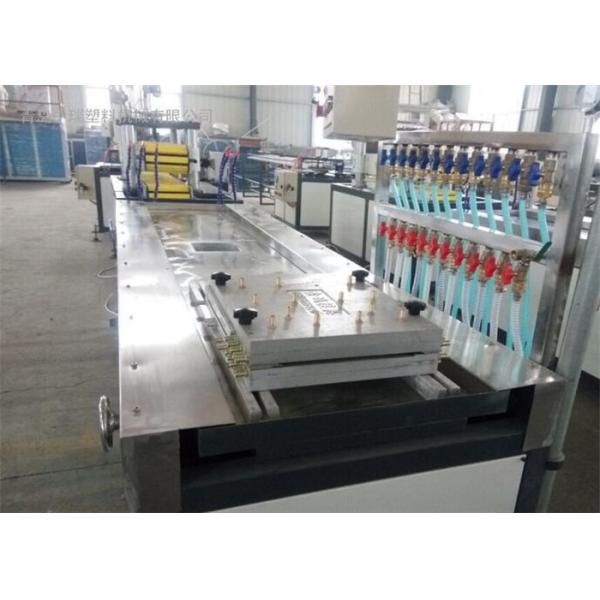

3. Vacuum Calibrating Platform
4. Haul Off Machine
5. Cutting Machine
6. Conveyor
7. Auxiliary parts: High Speed Cooling Mixer and Plastic Crusher
Process flow of wpc construction templates production line
Raw material + Wood powder + Additive → Mixing → Granules → Conical
twin screw extruder → Profile extrusion mould → Cooling molding die
→ Vacuum calibrating table → Haul off → Cutter → Tilting
stacker→Finished products inspecting and packing
Description:
1.The wood-plastic construction template is a new type of template
to replace steel templates and bamboo plastic sheet. With light
weight, impact strength, convenient assembling, high turnover,
smooth surface, no moisture, no mildew, acid, does not crack,
WIDTH, less joints, sawing, nailing, can be processed into any
length, and many other advantages. Can be repeatedly recycled more
than 20 times, the price is far lower than the current construction
industry to use bamboo template, and has excellent flame retardant
properties, from the self-extinguishing of fire, smoke-free,
without any gas. The new generation of safe green energy-saving
products.
2.Our production lines have two extruders co-extrusion type and
three extruderrs co-extrusion type. Our extruders adopt specially
designed screw. we did a lots of study from process to formula. The
performance of our machinery and ewuipment reached the
international advnced level.
3.The plates produced by our production line have no cracking and
non-deformation in high temperature . Usually the template can be
used for more than 30 times, and maximum can be used for 50 times.
4.The wpc plate has the same characteristics as wood boards: which
can enailed , can be sawed , can be drilled , can be planed , can
be sculptured. With the exclusive formula developed by our company
, there is no need to granulate the material , which is cost
savings and labor saving.
Specifications:
| Model | | JG-MSC80/156 | JG-MSC80/156-FH |
| Screw dia. | mm | Ø80/Ø156 | Ø80/Ø156 | Ø65/Ø132 |
| Screw quantity | piece | 2 | 2 | 2 |
| Screw speed | r/min | 1-37.7 | 1-37.7 | 1-39.1 |
| Main extruder power | KW | 75 | 75 | 37 |
| Heating power | KW | 36 | 36 | 24 |
| Extrusion output | kg/h | 150-350 | 250-450 | 250-450 |
| Model | BF600 | BF1220 |
| Max. product width | mm | 600 | 1220 |
| Draw-off height | mm | 150 | 150 |
| Draw-off force | KN | 50 | 50 |
| Draw-off speed | m/s | 0-3 | 0-2.5 |
| Total power of auxiliary machine | KW | 35 | 40 |
| Cooling water consunmption | m3/h | 9 | 12 |
Applications:
WPC foam board making machine line are applied in PVC powder+Wooden
powder+other additives raw material to produce kinds of wpc foaming
board. Adopting our company’s special design and unique processing,
these lines can produce different proportion (0.55-0.95) profile
wood plastic products to meet customer’s needs. With different
products, we can match different performance twin extruder or
single extruder which equipped with auxiliary devices such as
vacuum forming machine, haul-off and cutting machine, loading
shelves to optimize its capacity. By using moulds which are
specially designed with customer’s products, customer can produce
the products that they need.
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000
working hours.
4) Our expert will answer any inquiry within 48 hours and it will
be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and
testing the lines.
7) The seller provides you with complete technical support
documents and the relative drawings of the electric components
written in Chinese and English.

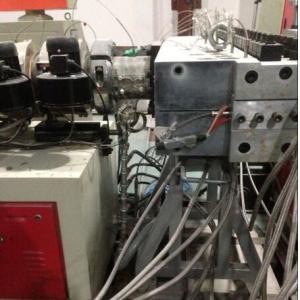

Machine display:
