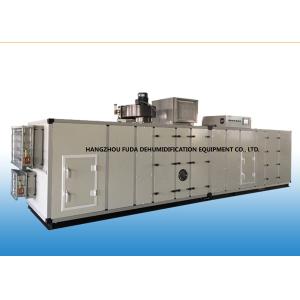

    High Efficiency Silica Gel Wheel Industrial Dehumidifier With Cooling Coil

    Ask Lasest Price
    Brand Name : FOUDANCE
    Model Number : ZCB-6000
    Certification : CE, ISO9001:2008
    Payment Terms : T/T, LC
    Supply Ability : 10000set/Year
    Delivery Time : 45days
    • Product Details
    • Company Profile

    High Efficiency Silica Gel Wheel Industrial Dehumidifier With Cooling Coil


    High Efficiency Silica Gel Wheel Industrial Desiccant Dehumidifier With Cooling Coil


    Quick Details:


    Style: Refrigeration combined with Wheel

    Desiccant Rotor: Sweden Proflute

    Desiccant Material: Silica Gel Wheel

    Rated Air Flow: 6000m³ /h

    Supply Air Parameters: T=25℃ RH=20%

    Dehumidifier Quality: High

    Installed Power: 49.1kw

    Voltage: 380V, 3 phase, 50Hz or customized

    Certification: ISO9001:2008

    Features: Economical, energy-saving

    Usage: Air temperature and humidity control


    General Description:


    ZCB Series Desiccant Dehumidifier System removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.

    Operating Principles:

    Supply Air Stream

    Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

    Exhaust Air Stream

    Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.


    Applications:


    • War Industry, Scientific Research, Electric Power Transportation
    • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
    • Chemical, Daily Chemical Industry, Food Beverage Industry
    • Safety Glazing Material Industry, Tyre and Rubber Industry
    • Medical Instrument, Vegetables Frozen, Precise Instrument
    • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

    Specifications:


    Main Parameters


    Model

    ZCB—6000

    Total Process Airflow

    6000m3/h

    Fresh Airflow

    300 m3/h

    Recirculated Airflow

    5700 m3/h

    Rotor Regeneration Airflow

    2000m3/h

    Parameters of Output Air

    T=25℃ RH=20%

    Regeneration Power

    42kw

    The Power of Regeneration Fan

    1.5kw

    The Power of Blower

    5.5kw

    The Power of Driving Motor

    0.1kw

    Installed Power

    49.1kw

    Cooling Load

    232.6kw

    Power Supply

    3P/380V/50HZ


    Competitive Advantage:


    • Sweden Proflute silicon gel wheel
    • A totally self contained unit
    • PLC automatic control system, human-machine interface
    • Aluminum alloy frame, anti-cold bridge
    • Body modularization design, foam injected double wall casing
    • Stainless steel drain pan and bottom boards
    • Process and reactivation air flow sectors are insulated
    • Electric or steam heating or convert type can be available
    • All operation parameters can be on-line observed, ensuring operation reliability
    • High temperature safety thermostat cutout
    • Electrical interlocking of fan motors, heaters and rotor driving

    User Friendly Automatic Interface Control System:



    Production Workflow Chart:


    Rotary Wheel Industrial Desiccant Dehumidifier for Pharmaceutical Industrial 23.8kg / h


    We can make suitbale dehumidifying solution for you according to your requirements. If you are interest on our product, contact us now.
