    32km/H Pedal Assist Electric Mountain Bike 36V Lithium Battery Hide In Frame Tube

    Ask Lasest Price
    Brand Name : DREAM WHEEL
    Model Number : EBS336
    Certification : EN15194
    Price : USD
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 2000PCS per month
    Delivery Time : 38days
    • Product Details
    • Company Profile

    32km/H Pedal Assist Electric Mountain Bike 36V Lithium Battery Hide In Frame Tube

    Pedal Assist High Level Electric Powered Mountain Bike 36v Lithium Battery Hide In Frame Tube


    Quick Details


    1. Motor power: 36V 250W rear GEAR motor

    2. Frame material: Aluminum alloy 6061

    3. Lithium battery: 36V 5.8Ah Samsung cells, hide in the frame tube

    4. Certification: EN15194

    5. Wheel size: 26"

    6. Brake system: Tektro Hydraulic Disc brake for both wheels

    7. Derailleur system: Shimano 7 speed

    8. Pedals assisted system: Yes. throttle can be optional


    Product Descriptions


    This EBS336 MTB style bike is our new electric bike, this bike make with quality components, like TEKTRO disc brakes, RST adjustable hydraulic fork, LCD panel, make the bike with good performance.


    Another feature, it's the lithium battery cells hide in the frame, so it looks like one normal bicycle. And this bike weight is much light than any others.


    Components


    1. 250W new mini rear Gear motor.


    2. RST fork, MTB trekking series, made with oil pressure system, adjustable preload, hydraulic remote lock-out.


    3. Tektro hydraulic disc brake, from TAIWANG high quality brake system supplier.


    4. Velo seat, high end seat supplier from TAIWAN, in any case, the wider and more comfortable seat can provide more experiences for riders.


    5. SPANNINGA high quality LED headlamp, from Netherlands


    Specifications


    Model number

    EBS336

    Motor

    36V 250W rear GEAR motor

    Battery

    36V 5.8Ah lithium, SAMSUNG cells

    Charge time

    4-6h

    Charger

    110-240V, plug can be customized

    Controller

    36V 14A

    Speed

    25-32Km/h

    Driving distance

    40-45km by PAS

    Weight

    21.3Kgs

    Packing dimension

    1700x250x780mm

    Panel/speedometer

    LCD style

    Wheel

    26”

    Tire

    26”x1.95, KENDA off road tire

    Chain

    KMC rust-proof

    Frame

    Aluminum alloy 6061

    Fork

    26”, travel 80MM

    Shift lever

    Shimano

    Rear derailleur

    Shimano 7 speed

    Front brake

    TEKTRO Hydraulic Disc Brake

    Rear brake

    TEKTRO Hydraulic Disc Brake

    Brake levers

    TEKTRO

    Rims

    Aluminum alloy

    Spokes

    Front:13GX245/247; Rear:13GX207/209;

    Pedals

    Wellgo, with ball

    Chainwheel

    1/2*3/32*44T

    Cranks

    Aluminum, 170L

    Freewheel

    14-28T

    Handlebar

    Aluminum, W610x2.0T

    Stem

    Aluminum, Adjustable

    Grip

    92/135MM, black

    Seat

    Velo, 1663

    Seat tube

    Aluminum with suspension, 27.2*300*2.0T

    Lamp

    LED for front, SPANNINGA

    Wheel base

    1190mm

    Min ground clearance

    110mm

    Saddle ground clearance

    Max:990mm; Min:850mm

    Handlebar ground clearance

    1030mm

    Licence requirement

    NO

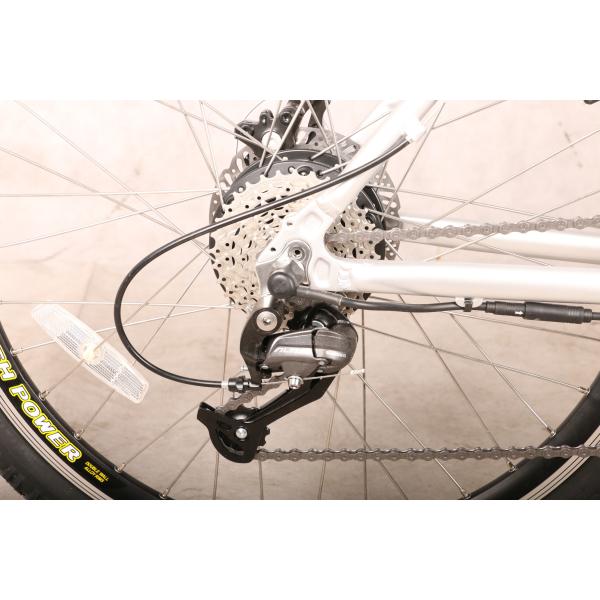

    Pictures Show







    Quality 32km/H Pedal Assist Electric Mountain Bike 36V Lithium Battery Hide In Frame Tube for sale
