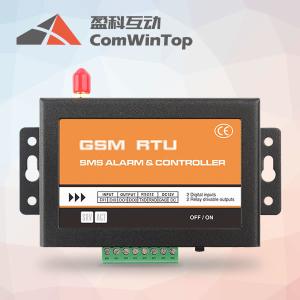

    CWT5005 2DI + 2DO, GSM Water Pump Controller Switch

    Ask Lasest Price
    Brand Name : CWT
    Model Number : CWT5005
    Certification : CE,RoHS
    Price : $50-$90/set
    Payment Terms : T/T, western union, paypal
    Supply Ability : 5000 units per month
    Delivery Time : 3 days after payment
    • Product Details
    • Company Profile

    CWT5005 2DI + 2DO, GSM Water Pump Controller Switch

    CWT5005 2DI + 2DO, GSM Water Pump Controller Switch


    Support 3G/4G version (Skype: lisali1220 WhatsApp: 0086 13652426178)

    CWT5005 GSM Power Failure Alarm is special for monitoring 110~220VAC power status by SMS text message, it integrated high performance GSM Module and AC Power Status monitoring circuit inside.

    while AC power goes off, will send AC Power Goes OFF to the authorized number immediately, and while the external AC power goes on, will send AC Power Goes ON to the authorized number immediately.

    When the backup battery voltage lower than 3.6V, will send the SMS Backup Battery low voltage to the authorized number immediately. It includes internal large capacity rechargeable battery which can standby upto 8 hours after AC Power failure.


    5005

    The user can inquiry the AC Power Status from mobile phone in anywhere by SMS or call in from the authorized number, No call charges for inquiry. the GSM AC Power Monitoring Alarm rejects the call from authorized number then return onsite AC Power Status on the first 'ring'.

    Quickly installation, just connect the AC/DC Adaptor 12V to the GSM Unit, and send 1 SMS to setup the authorized number are finished the settings.

    Specifications

    Parameter

    DC Power supply

    12-24V DC (Standard adapter: DC 12V/1.5A)

    Power consumption

    12V input Max. 150mA/Average 50mA

    Frequency range

    Quad-frequency 900/1800/850/1900HMz

    SIM Card

    Supporting 3V SIM Card

    Antenna

    50 Ω SMA Antenna interface

    Serial

    RS232

    Temperature range

    -30°C ~ +70 °C

    Humidity range

    Relative humidity 95%

    Digital Input

    2 digital inputs(Dry contact)

    output

    2 drivable relay outputs(open-collector outputs)

    Output drive voltage

    Equal to input DC voltage

    Output drive power

    Drive voltage ≤35V, drive current ≤500mA

    Exterior dimension

    88×60×25mm

    Weight

    150 g
