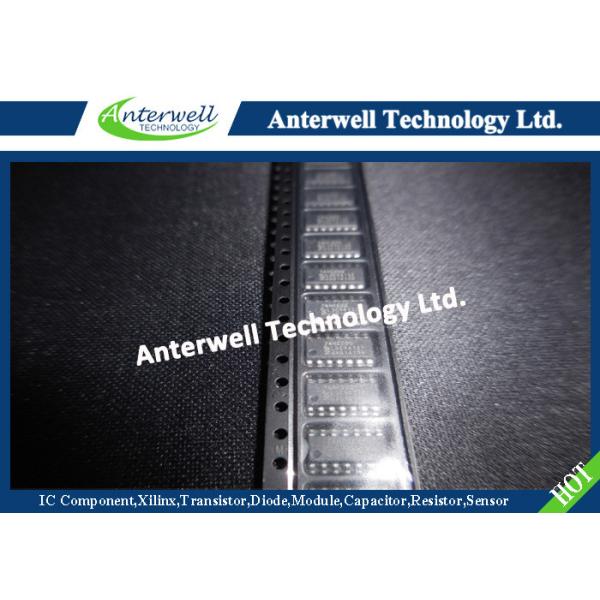

74HC00D Electronic IC Chips Quad 2-input NAND gate

74HC00; 74HCT00
Quad 2-input NAND gate

FEATURES
• Complies with JEDEC standard no. 8-1A
• ESD protection:
HBM EIA/JESD22-A114-A exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
• Specified from −40 to +85 °C and −40 to +125 °C.

DESCRIPTION
The 74HC00/74HCT00 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.

The 74HC00/74HCT00 provide the 2-input NAND function.

QUICK REFERENCE DATA
GND = 0 V; Tamb = 25 °C; tr = tf = 6 ns.

Notes
1. C_PD is used to determine the dynamic power dissipation (P_D in µW).
P_D = C_PD × V_CC² × f_i × N + Σ(C_L × V_CC² × f_o) where:
f_i = input frequency in MHz;
f_o = output frequency in MHz;
C_L = output load capacitance in pF;
V_CC = supply voltage in Volts;
N = total load switching outputs;
Σ(CL × VCC2 × fo) = sum of the outputs.
2. For 74HC00 the condition is V_I = GND to V_CC.
For 74HCT00 the condition is V_I = GND to V_CC − 1.5 V.

Fig.1 Pin configuration DIP14, SO14 and (T)SSOP14.


Fig.2 Pin configuration DHVQFN14. Fig.3 Logic diagram (one gate).














Fig.4 Function diagram. Fig.5 IEC logic symbol.
