    Brass IP68 Waterproof PG13.5 Thread Cable Gland with Strain Relief Clamp for 6-12mm Range

    Ask Lasest Price
    Brand Name : Sino Cable Gland Factory
    Model Number : PG13.5
    Certification : CE, ROHS, REACH, IP68
    Price : at very competitive prices
    Payment Terms : T/T, L/C, Western union
    Supply Ability : 2000000pcs / month
    Delivery Time : normally 8-10 days
    • Product Details
    • Company Profile

    Brass IP68 Waterproof PG13.5 Thread Cable Gland with Strain Relief Clamp for 6-12mm Range

    Applications areas:
    Central-acting strain relief cable glands with 2 pressing-screws is mainly used for connecting and securing flexible cables or wires to provide an extra protection against pull-out & traction, dust, water, oil, etc. With its outstanding ability in weather resistance, wide clamping range, strong strain relief, high sealing performance, such glands are widely used in the electrical distribution boxes/ cabinets, moving machines parts, automatic control, plant engineering, etc.

    How to use:
    Mount cable gland to the pre-drilled panel hole and fix it on board with locknut, insert the cables through the rubber seal and then tighten up the sealing nut to hold cables in position, finally tighten the two clamping screws.

    Our advantages:
    (1) Direct factory selling products at factory prices.
    (2) All our products are friendly to earth (green products).
    (3) High quality ensures long service life for indoor and outdoor applications.
    (4) All our cable glands reach IP68 liquid tight protection.
    (5) Timely delivery and good service are our principle.
    (6) Free samples available.
    (7) Special cable glands can be customized as per customer's samples or drawings.
    (8) OEM services can be available.
    About us:
    We are one of the most professional manufacturer of Cable Accessories in China. Currently we manufacture and export plastic cable glands, metal cable glands, stainless steel cable glands, corrugated tubes, pipe fittings, plastic cable ties, metal cable ties, cable clips, etc. With high quality, reasonable prices and good services, our products have been exported to more than 100 countries and regions. Welcome customers from home and abroad to work with us!


    Descriptions:

    Brand name:Sino Cable Gland Factory
    Place of origin:Zhejiang, China
    Product name:Brass IP68 Waterproof PG13.5 Thread Cable Gland with Strain Relief Clamp for 6-12mm Range
    Sizes available:PG13.5 (clamping range: 6-12mm or 10-14mm)

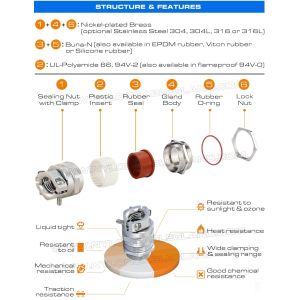

    Raw material:Nickel-plated Brass for Locking Nut, Sealing Nut & Body
    UL-approved nylon 66, 94V-2 for Clamping Claw
    NBR for Seal & O-Ring (also available in weatherproof EPDM rubber or Silicone rubber)
    Standard colors:Metallic silver color
    Main advantages:Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency
    Certifications:CE, ROHS, REACH, IP68
    IP protection:IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
    Thread lengths:Short thread & long thread are available
    Operation temp.:Static:-40℃ to100℃, short-term:120℃. Dynamic:-20℃ to 80℃, short-term:100 ℃
    OEM service:Yes, available
    Supply capability:2,000,000 pieces per month
    Minimum quantity:200 pieces
    Samples available:Free samples available upon request
    Delivery time:Normally 8-10 days after confirmation of orders
    Payment terms:T/T in advance, Western Union, L/C at sight
    Shipment terms:EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air
    Export packing:100 pieces / bag, 50pieces /color box, special packing can be customized as requested

    Brass IP68 Waterproof PG13.5 Cable Gland with Strain Relief (Stress Relief) Clamp for 6-12mm Range
