Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006

    Buy cheap Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006 from wholesalers

    Buy cheap Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006 from wholesalers
    • Buy cheap Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006 from wholesalers

    Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006

    Ask Lasest Price
    Brand Name : Innovation
    Model Number : IN-MS-006
    Price : USD1-USD100
    Payment Terms : L/C, T/T
    Supply Ability : 1000PCS/MONTH
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

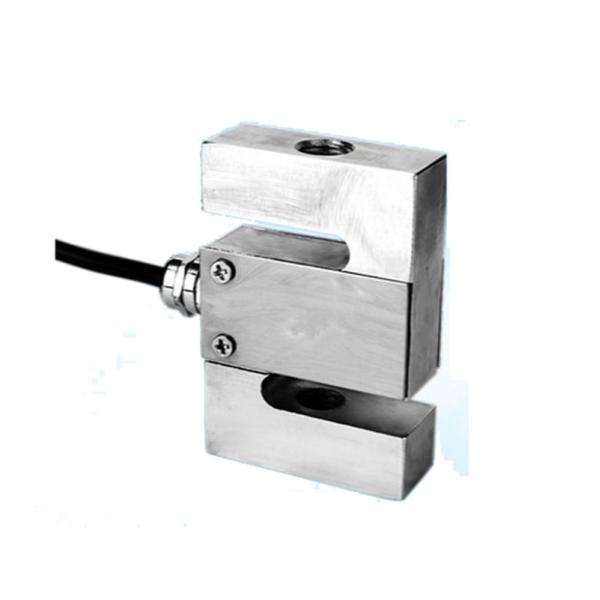

    Alloy Steel/Stainless Steel Tension S Type Load Cell IN-MS-006

    Alloy steel/Stainless Steel Tension S Type Load Cell IN-MS-006


    load cell

    load cell


    Capacity10-5000KGMaterialAlloy steel/Stainless Steel
    Rated Output2.0/3.0±10%mV/VOutput Impedance350±3Ω
    Zero Balance±2%F.S.Insulation≥5000MΩ/100VDC
    Non-linearity0.03%F.S.Recommended Excitation5-10V
    Hysteresis0.03%F.S.Maximum Excitation15V
    Repeatability0.03%F.S.Compensated Temp Range-10~60ºC
    (30)Creep (30min)0.03%F.S.Operating Temp Range-20~80ºC
    Temp Effect on Output0.025%F.S./10ºCSafe Load Limit150%
    Temp Effect on Zero0.025%F.S./10ºCUltimate Load Limit200%
    Input Impedance385±5ΩCable Sizeφ5x 3m
    Wire ConnectionEx + : Red; Ex - : Black; Sig + : Green; Sig - : White
