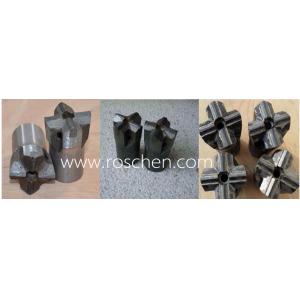

Furnace Blast Hole Tapping Carbide Cross Bits
Furnace Blast Hole Tapping Carbide Cross Bits For hardest rock
formation Top Hammer Drilling
Our cross bits diameters are from 20mm to 127mm, and different type
are available, like R22,
R25, R32, R38, T38, T45, T51, ST58, ST68,GT60, etc..
Feature:
1. Excellent drilling penetration
2. Used in very hard or hardest rock formation
3. Adequate for various construction conditions
4. Strong corrosion resistance
| Application: |
| 1 | The cross bit is suitable for digging of very hard rock formation,
hard formation and crack-grown formation. |
| 2 | All cross bits have to be reground at regular intervals to crush
rock efficiently. |
| 3 | We choose different material and size for the cross bits in order
to adapt the different rock formations and working conditions. |
Technical parameter:
| H25 |
| Diameter | button(mm) | flushing holes |
| mm | inch | length*width*height | side | front |
| 35 | 1 3/8" | 13*8*12 | 4 | 1 |
| 38 | 1 1/2" | 14*8*12 | 4 | 1 |
| 41 | 1 21/32" | 15*8*12 | 4 | 1 |
| 45 | 1 49/64" | 17*8*12 | 4 | 1 |
| 48 | 1 57/64" | 17*8*14 | 4 | 1 |
| 51 | 2" | 19*10*16 | 4 | 1 |
| 57 | 2 1/4" | 22*10*16 | 4 | 1 |
| 64 | 1 33/64" | 24*10*16 | 4 | 1 |
| 76 | 3" | 29*12*20 | 4 | 1 |
| R25/R28 |
| Diameter | | Button(mm) | Tthread |
| mm | inch | length*width*height | side |
| 35 | 1 3/8" | 14*8 | R25 |
| 38 | 1 1/2" | 14*8 | R25 |
| 41 | 1 5/8" | 14*8 | R25 |
| 43 | 1 11/16" | 14*8 | R25 |
| 38 | 1 1/2" | 14*8 | R28 |
| 43 | 1 11/16" | 14*8 | R28 |
| 45 | 2 3/4" | 14*8 | R28 |
| R32 |
| Diameter | Button(mm) | Thread |
| mm | inch | length*width*height | side |
| 45 | 1 3/4" | 16*10 | R32 |
| 48 | 1 7/8" | 16*10 | R32 |
| 51 | 2 | 16*10 | R32 |
| 57 | 2 1/4" | 16*10 | R32 |
| 64 | 2 1/2" | 18*13 | R32 |
| 76 | 3 | 18*13 | R32 |
Roschen are a leading manufacturer of drilling tools, like DTH
hammers and bits, DTH drill pipes, RC hammers and bits, top hammer
button bits, coupling, cross bits, drill rods, and rock drilling
equipment, tools, accessories, etc.
