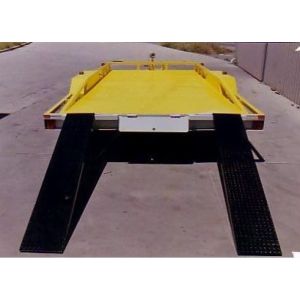

16 X 6’6 Tandem Car Carrier Trailer / Lightweight Car Hauler With 230mm High Rails

    Buy cheap 16 X 6’6 Tandem Car Carrier Trailer / Lightweight Car Hauler With 230mm High Rails from wholesalers

    Buy cheap 16 X 6’6 Tandem Car Carrier Trailer / Lightweight Car Hauler With 230mm High Rails from wholesalers
    • Buy cheap 16 X 6’6 Tandem Car Carrier Trailer / Lightweight Car Hauler With 230mm High Rails from wholesalers

    16 X 6’6 Tandem Car Carrier Trailer / Lightweight Car Hauler With 230mm High Rails

    Ask Lasest Price
    Brand Name : HONGLE
    Model Number : 16x6’6
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : FOB
    Supply Ability : Annual production capacity 5000 pcs
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    16 X 6’6 Tandem Car Carrier Trailer / Lightweight Car Hauler With 230mm High Rails

    16 X 6’6 Tandem Car Carrier Trailer / Lightweight Car Hauler With 230mm High Rails


    Description:


    EXTRA FEATURES INCLUDED

    • Full Checker plate Floor and 230mm High Rails

    • Ramps 2 off 300mm Wide Sliding in Back of Trailer

    Ramps are Easily set up on the back ready for driving car up

    • Side Tie Rails with Deflection rails

    • Top Coated and Under Coated in Our Standard Colours

    STANDARD FEATURES

    • Full Checker Plate Floor

    • Sides Rails 170mm high Allowing for car doors to open

    • Front Winch 820kg 5:1 ratio AHW18 with 6.5mm thick cable 11mts long

    • Mudflaps and all electrical complying with Australian standards

    • New wheels (NOTE: NOT SECOND HAND)


    SPECIFICATIONS


    ROLLED BODY

    170mm High Sides 2.1mm Rolled Checker Plate Tub

    MUDGARD

    2.1mm Checker Plate, 250mm Wide 4 Fold

    CHASSIS

    100X50 AND 75X50 RHS

    SIDE RAILS

    50x25x2.5mm (extra reinforced)

    DRAW BAR

    100x50x3mm RHS Welded Back to Front Springs hangers, spare wheel holder and Plug Holder with 2 Off 8mm Rated chain 450mm Long

    SUSPENSION

    Tandem Rocker Rollers Springs suits 14" Wheels 3000kg

    AXLES

    Axles Heavy Duty 45mm Square Solid

    COUPLING

    50mm Mechanical over Ride Plunger Type / Hand Brake

    BRAKE

    Mechanical Disc/Galvanised Calliper’s True Cable Hand Brake

    HUBS/FORD

    Hub Ford SL B-type PCD 114.3, 5 x 1/2" Studs (Stud Centre 66.6mm)

    BEARINGS

    Bearing B-type Inner Large L68149 / B-type outer Small LM12749

    RIMS

    NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3 (FORD)

    TYRES

    White Steel Rim With 185C Tyre 850kg

    LED Multi volt 12-24

    Lights LED, ADR approved lights (Protected) front and side reflectors

    Comes with 7 pin round plug


    TRAILER DIMENSIONS

    TRAILER PRICES INCLUDE GST


    16x6’6

    18x6’6


    Trailer

    16x6’6”

    20x6’6”


    MUDGAURD HEIGHT

    170

    170


    TRAILER




    FLOOR HEIGHT

    520

    520


    Spare




    OVERAL HEIGHT

    690

    690


    J/wheel




    INSIDE LENGTH

    4800

    6000


    Rego




    INSIDE WIDTH

    2000

    2000


    Cage




    DRAWBAR LENGTH

    1650

    1650


    Ramp




    OVERAL LENGTH

    6500

    7650


    H/frame




    OVERAL WIDTH

    2500

    2500


    Winch




    LOAD RATING KG

    2000

    2000


    Legs




    ATM KG

    937

    1014


    3200KG




    PAYLOAD KG

    1063

    986


    Total
