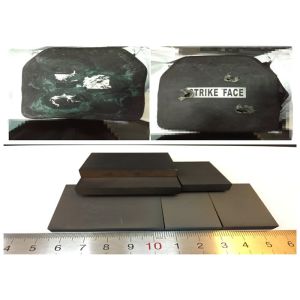

    Boron Carbide Ballistic Ceramic Tile / Silicon Carbide Ceramic Tile Typical For Bullet Proof Plate

    Ask Lasest Price
    Brand Name : HIGH BROAD / OEM
    Model Number : NIJ III Boron Carbide ballistic ceramic tile
    Certification : ISO
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram PayPal
    Supply Ability : 100mt per month
    Delivery Time : 10 mt :14 days
    • Product Details
    • Company Profile

    Boron Carbide Ballistic Ceramic Tile / Silicon Carbide Ceramic Tile Typical For Bullet Proof Plate

    Boron Carbide ballistic ceramic tile / Aluminum Oxide Ceramic Tile Typical for Bullet Proof Plate

    Specifications

    • made of boron carbide
    lightweight,high toughness
    for aircraft armor,vehicle armor
    for body armor


    Description:


    Boron carbide bulletproof armor plate is made by sintereting boron carbide abrasive grain in the

    high pressure vacuum sintering furnace, from room temperature to a certain temperature, keep this temperature for several hours then naturally cooling to room temperature again, then processing it mechanically to reach a required tolerance.

    Applications:


    Boron carbide bulletproof armor plate is suitable for making lightweight bulletproof armor, using to protect aircraft, vehicle, naval vessel and making bullet-proof vest.

    Typical Chemical Analysis:


    Total Boron 77.90%

    Total Carbon 20.98%

    Fe2O3 0.16%

    B+C 98.88%

    B4C 95.85%

    Physical Properties:


    Color Grey

    Bending Strength 469Mpa

    Fracture Toughness 4.2Mpa.m1/2

    Density 2.56 g/cm3

    Hardness 30.83Gpa, Vickers

    Dimension Available :

    Length(mm)

    Width(mm)

    Thickness(mm)

    50

    50

    8-10

    150

    150

    5-10

    200

    200

    5-10


    Hexagon, single spherical side, double spherical side, arc shape and OEM dimension available upon request.



    Contact me for more details:


    Vivian Jiang


    International Marketing & Sales Department Manager

    Email: vivian@hbnewmaterial.com,metal@vip.163.com

    Tel: +86-731-85717705

    Fax: +86-731-85716569

    Mobile/whatsapp: +86-139-7488-3816

    Skype: vivian.jjy
