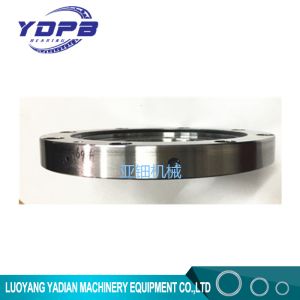

XU series crossed roller slewing rings is a kind of bearing with integrated inner- and outer ring. With
single row rollers arranged crosswise ,separated with spacer, with
higher load ,It is being used in cases where high rotational
accuracy of both the inner- and outer rings is required.
Crossed Roller Slewing Ring Bearings Parameters
Model number- XU120179
Inner ring(mm)- 124.5
Outer ring(mm)- 234
Width(mm)- 35
Weight(Kg)- 7
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Series Model No.
Series Model No.
XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264,XU160405,XU080430,XU300515.
Related moldes.
Parameters for Single-row Crossed Roller Slewing Bearings
| Series | Model
Number | Main dimensions | Fixing Hole(Outer ing) | Fixing Hole(Inner ing) | Basic load rating
(Axial) | Basic load rating
(Radial) | Weight
Kg |
Inner ring
d(mm) | Outer ring
D(mm) | Roller pitch
circle
dp(mm) | Width
B(mm) | Pitch of holes
φLa | Number
na | Pitch of holes
φLi | Number
ni | Ca KN | Coa KN | Cr KN | Cor KN |
| XU | XU050077 | 40 | 112 | 77 | 22 | 97 | 6-φ6.6 | 56 | 6-M8 | 22.4 | 29 | 14.3 | 14.2 | 1.4 |
| XU060094 | 57 | 140 | 94 | 26 | 120 | 6-φ9 | 70 | 6-M8 | 32.5 | 37.5 | 20.7 | 18.4 | 2.4 |
| XU060111 | 76.2 | 145.79 | 111 | 15.87 | 133.1 | 8-φ6.9 | 88.9 | 8-φ6.9 | 36 | 44.5 | 22.8 | 21.5 | 1.2 |
| XU080120 | 69 | 170 | 120 | 30 | 148 | 6-φ9 | 90 | 6-M8 | 56 | 53 | 35.5 | 26 | 4 |
| XU080149 | 101.6 | 196.85 | 149.6 | 22.22 | 177.8 | 16-φ6.9 | 115.8 | 16-φ6.9 | 63 | 66 | 40 | 32.5 | 3.6 |
| XU120179 | 124.5 | 234 | 179 | 35 | 214 | 12-φ11 | 144.5 | 12-φ11 | 118 | 179 | 75 | 88 | 7 |
| XU120222 | 140 | 300 | 222 | 36 | 270 | 12-M16 | 170 | 12-φ18 | 133 | 275 | 85 | 131 | 12 |
| XU160260 | 191 | 329 | 260 | 46 | 305 | 20-φ14 | 215 | 20-φ14 | 212 | 350 | 135 | 173 | 16 |
| XU080264 | 215.9 | 311 | 264 | 25.4 | 295.3 | 12-φ8.7 | 231.8 | 12-φ8.7 | 85 | 117 | 54 | 57 | 6.9 |
| XU160405 | 336 | 474 | 405 | 46 | 450 | 30-φ14 | 360 | 30-φ14 | 270 | 550 | 172 | 270 | 25 |
| XU080430 | 380 | 480 | 430 | 26 | 462 | 20-φ9 | 398 | 20-M10 | 110 | 280 | 70 | 138 | 12 |
| XU300515 | 384 | 646 | 515 | 86 | 598 | 18-φ26 | 432 | 18-φ26 | 720 | 1370 | 455 | 670 | 115 |
Cross roller slewing rings related pictures
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before
shippment), Western Union ,Money Gram, for larger amount consider
LC, all can be negotiable.
We specialized in kinds of precision slewing rings,turntable
bearings with 50mm-300mm four point contact ball bearings,inner geared, outer geared,light
series,kaydon type,ina type,imo type etc.
VLA200414N VLA200544N VLA200644N VLA200744N VLA200844N VLA200944N
VLA201094N VLI200414N VLI200544N VLI200644N VLI200744N VLI200844N
VLI200944N VLI201094N VLU200414N VLU200544N VLU200644N VLU200744N
VLU200844N VLU200944N VLU201094N
VSA200414N VSA200544N VSA200644N VSA200744N VSA200844N VSA200944N
VSA201094N
VSI200414N VSI200544N VSI200644N VSI200744N VSI200844N VSI200944N
VSI201094N VSI250755N VSI250855N VSI250955N VSI251055N
VSU200414N VSU200544N VSU200644N VSU200744N VSU200844N VSU200944N
VSU201094N VSU250755N VSU250855N VSU250955N VSU251055N
VSA250755N VSA250855N VSA250955N VSA251055N
VA140188 V VA160235 N VA160302 N VA250309 N
VI160288N VI140326V VI160420N
VU140179 VU200220 VU130225 VU200260 VU140325 VU250380
VU200405 VU250433 VU300574 VU360680
XV30 XV40 XV50 XV60 XV70 XV80 XV90 XV100 XV110
CROSSED CYLINDRICAL ROLLER BEARINGS, CROSSED ROLLER SLEWING RINGS,
XSA140414N XSA140544N XSA140644N XSA140744N XSA140844N XSA140944N
XSA141094N
XSI140414N XSI140544N XSI140644N XSI140744N XSI140844N XSI140944N
XSI141094N
XSU140414N XSU140544N XSU140644N XSU140744N XSU140844N XSU140944N
XSU141094N
XU050077 XU060094 XU060111 XU080120 XU080149 XU120179
XU120222 XU160260 XU080264 XU160405 XU080430 XU300515
Small size slewing rings, kaydon type, turntable, 30-220mm
MTO-050/T MTO-065/T MTO-065/T MTO-122/T MTO-143/T MTO-145/T
MTO170/T MTO210/T/X MTO-265/T/X MTO-324T/X
MTE-145/T/X MTE210/T/X MTE265/T/X MTE324/T/X MTE415/T/X MTE470/T
MTE540/T MTE-590/T MTE-705/T MTE-730/T MTE-870/T
Main Application:
NC Machine Tools
Metal Cutting Machine Tools
Moulds and Dies,Cutters,Tools
Machinery & Materials for Processing Plastics
Machinery & Materials for Rubber Industry
Machinery Parts and Components
Packaging Machinery & Materials
Printing Machinery & Materials
Pharmaceutic Equipments
Machinery for the Food and Beverage Industries
Automatic Machinery and Equipment
Textile Machinery & Materials
Hydraulic and Pneumatic Components
Metal Forming Machine Tools
Metal Products
Welding and Cutting Machinery
Apparatus and Machinery for Chemical Industry
Woodworking Machinery & Materials
Testing Equipment
Piping Systems (Pipes, Valves, Fittings)
Steel Pipe & Tube Making Machines
Bolt, Screw & Nut Making Machines
Many other precision bearings series available
