Fully Automatic Shutter Door Roll Forming Machine PLC Controlled Chain Transmission

Add to Cart

Mental Shutter Door Roll Forming Machine

Machine Technical Data

	Items	Specifications	Remarks
Material of coil	Material Thickness	1.5-2mm galvanized
Material of coil	Un Coiler	3 tons manual
Forming system	Rolling Speed	10 m/min
	Roller Stations	12 stations
	Roller Material	45# Steel with quenching 50mm shaft
	Maim Motor Power	7.5 kw
	Hydraulic cutting Power	4 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	380V, 50HZ,3 phase Also can satisfy Customer’s require
Electrical control system	Control System	PLC (Panasonic) as list in the note
	Weight	About 2.5 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 4500mm* Width 600mm*Height 800mm

Production Line Machine List

Standard Profile :

Working Flow of Octagon Pipe Roll Forming Machine

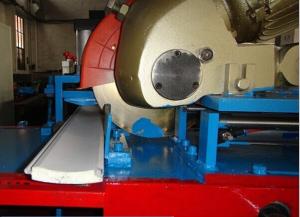

Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

Photo Gallery

Machine pictures
