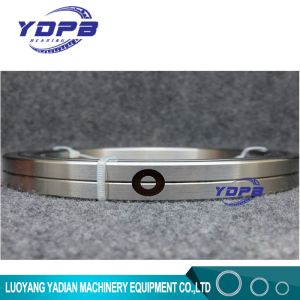

SX0118/500 customized SX thin-section crossed roller bearings 500x620x56mm

SX0118/500 Crossed Roller Bearings 500x620x56mm​ High precision Robotic arm use

Crossed Roller Bearings Parameters

Model number- SX0118/500

Inner ring(mm)- 500

Outer ring(mm)- 620

Width(mm)- 56

Weight(Kg)-44

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner Ring Rotation

Load direction- Multi-load

Structure- Outer ring split

Same structure Different sizes models

SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500

Main parameters

SX series crossed roller bearings (separatable outer-ring ,Type for inner ring rotation)

Crossed roller bearings SX are bearings for high precision applications, whose dimensions conform to ISO dimension series 18 to DIN 616. They comprise outer rings, inner rings, rolling elements and plastic spacers. The outer ring is split and is held together by three retaining rings.

Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, low clearance or preload. Preloaded bearings have the suffix VSP

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
Online shopping Address: https://www.ydpbbearings.com

Luoyang Yadian Machinery Equipment Co.,Ltd is a professional precision bearing manufacturer,located in the well-kown bearing production base-luoyang city. Many workers with middle and senior bearing production management experiences and the Technicians can supply you perfect products technical service.Mainly produce rotary table bearings,crossed roller bearings,crossed taper roller bearings,Thrust cylindrical roller bearings etc. The precision level is P5,P4,P2. Bearing Size range is from Inner ring 50mm---Outer ring 130Locity Machinery Co.ltd is a professional precision bearing manufacturer,located in the well-kown bearing production base-luoyang city. Many workers with middle and senior bearing production management experiences and the Technicians can supply you perfect products technical service.Mainly produce rotary table bearings,crossed roller bearings,crossed taper roller bearings,Thrust cylindrical roller bearings etc. The precision level is P5,P4,P2. Bearing Size range is from Inner ring 50mm---Outer ring 1300mm.

Main products are rotary table bearings YRT,YRTS,YRTM,ZKLDF series and crossed cylindrical roller bearings RB,RE,RU,RA,RA-C,CRB,CRBC,CRBH,XSU,SX. Crossed taper roller bearings JXR,XR,Thrust cylindrical roller bearings 811,812 series etc. At the same time , Bearings precision level of Locity machinery can achieve to P4,P2 ,we accumulated many experiences After years of service to customers abroad and home, products have been exported to Germany,Italy,Korea,Japan,America,Belgium,Turkey etc. The most application area is precision rotation working table,machining center rotation table,Industrial robot joints and rotation,manipulator rotation parts,calculator,IC manufacturing equipments,CNC machine tool,Automation industry,direct drive motor,precision instrument,radar,Medical equipment,printing,textile industries etc. Replace Import ones.

Yadian Machinery Bearings are all controlled according to ISO9001 quality requirements before factory.Quality is stable and with best performance compare with price. We are always receive good assessment from customers domestic and abroad.Waiting our win-win relations
