Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port

    Buy cheap Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port from wholesalers

    Buy cheap Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port from wholesalers
    • Buy cheap Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port from wholesalers

    Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port

    Ask Lasest Price
    Brand Name : XINGGE
    Certification : ISO9001,SGS,UL,CE,REACH
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 2,000,000pcs/Month
    Delivery Time : 24-30 work days
    • Product Details
    • Company Profile

    Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port

    Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port


    Electrical
    1. Internal magnetics are 100% electrically tested for functionality per IEEE802.3 requirement
    2. High performance for maximum EMI suppression
    3. 350uH minimum OCL with 8mA bias current
    Current rating1.5A
    Voltage rating125V AC
    Insulation resistance500MΩ min
    Contact resistance30MΩ max
    Withstanding voltageAC 1500V RMS 50Hz or 60Hz 1 min
    Insertion loss-1.2dB Maximum at 100kHz-100MHz
    Return loss-18dB minimum at 1MHz-30MHz
    -14dB minimum at 30MHz-60MHz
    -12dB minimum at 60MHz-80MHz
    Common mode rejection-30dB minimum at 1MHz-100MHz
    Cross talk-30dB minimum at 1MHz-100MHz
    Mechanical
    Insertion force2 contacts 350g
    4 contacts 500g
    6 contacts 750g
    8 contacts 900g
    10 contacts 1050g
    Retention strength7.7KG.F min between jack and plug
    Durability800 mating cycles min
    Material
    HousingABS RESIN(UL94V-0) PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0)
    Contact wireDiameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel
    Shield0.20-0.25mm thickness brass with tin plated
    Gold plating3u", 6u", 15u", 30u", 50u"
    LED specificationsStandard LED colorLED wavelengthForward (V max)Typical (V TYP)Luminous intensity
    Green560-580 nm2.5V2.1-2.2V9-25 MCD
    Yellow580-610 nm2.5V2.1-2.2V9-30 MCD
    Orange580-610 nm2.5V2.1-2.2V50-100 MCD
    1. LED intensity/wavelength measured with photo research PR-650 colormeter
    2. With a forward current of 20mA, absolute maximum ratings (Ta=25°C)
    RoHS peak wave solderRoHS-5 peak wave solder temperature rating 235 ±5°C
    RoHS-6 peak wave solder temperature rating 260 ±5°C
    Operating and storage temperature
    Operating temperatures-40 to 85°C
    Storage temperatures-40 to 85°C
    Applications
    Networking productsNIC, hub, switch, router, bridge, work
    StationPC/system, printer, server, NB,ia cable modem, XDSL application, set-top-box

    Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the step are doing by ourself. So we can control the quality.

    1) Manufactured under strict controls.
    2) ISO 9001:2008
    3) UL Certification
    4) Reach Cetitifaction
    5) RoHS compliance
    6) OEM for PULSE
    7) Active Environmental policy
    8) Every module tested 3times (not just batch tested)

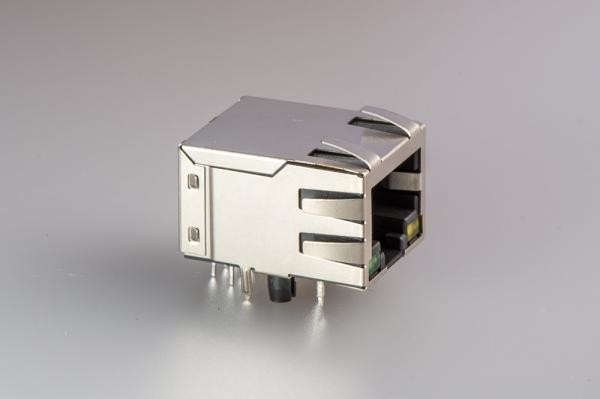

    Quality Vertical Female Jack RJ45 With Transformer , 8 Pin Shielded RJ45 Connector Single Port for sale
