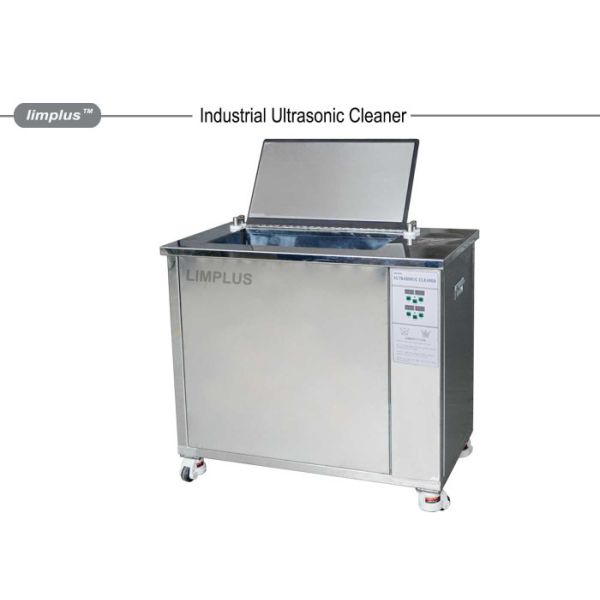

Workshop Factory DPF Ultrasonic Cleaning Machine with High
Frequency Strong Power SUS304
Ultrasonic cleaner simply saves time and resources by eliminating
the need for manual scrubbing and dependence on needless cleaning
chemicals.
The hazardous chemicals are replaced with chemical
free/biodegradable soaps. Just to name a few examples of items that
are commonly cleaned by a Table top ultrasonic cleaner include
power steering parts, pistons, fuel injectors, valves, bearings,
filters, shock absorber parts, etc.
Specifications of LS-9001:
Tank working dimension (mm): 1150*700*600(L*W*H)
Overall dimension (mm): 1380*880*900(L*W*H)
Tank total capacity: 483L
Tank material: SUS304 / SUS316L
In-tank surface finishing: Hard-Cr Plating Treatment ( 20+ microns
)
Housing material: Stainless steel
Ultrasonic frequency: 28kHz / 40kHz
Ultrasonic transducer: 90pcs
Ultrasonic output power (MAX.): 4500W
Electronic generator:3units LSG1500
Heater (hot plate) power: 12KW
Timer: 0~999minutes
Heater: 20~95C
Power supply: AC220V/AC380V, 3phase
All standard sizes for option: (Customized size is welcomed)
| Limplus Single tank Ultrasonic Cleaners spec. |
| Model | LS-1201S | LS-1801S | LS-2401S | LS-3001S | LS-3601S | LS-4801S | LS-6001S | LS-7201S |
| Tank Dimension(mm) | 400x300x300 | 500x 350x350 | 550x 400x400 | 600X 450X400 | 600X 500X450 | 700X 500X500 | 800X 600X550 | 1000X 600X600 |
| Max. Capacity | 36L | 61L | 88L | 96L | 135L | 175L | 264L | 360L |
| Construction Case | SUS304 (Mirror shining image available) |
| Construnction Tank | SUS304 |
| Transducer Number | 12pcs | 18pcs | 24pcs | 30pcs | 36pcs | 48pcs | 60pcs | 72pcs |
| Ultrasonic power(Max.) | 600W | 900W | 1200W | 1500W | 1800W | 2400W | 3000W | 3600W |
| Ultrasonic frequency | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz | 28/40kHz |
| Temperature range | 20~95℃ adjustable |
| Heating power | 1.5KW | 3KW | 3KW | 4.5KW | 4.5KW | 6KW | 6KW | 9KW |
| Timer | 0~99min | 0~999min | 0~999min | 0~999min | 0~999min | 0~999min | 0~999min | 0~999min |
| Drain | 3/4" Valve |
| Lid & Basket | Available, material: SUS304 |
| Cleaning Tank voltage | AC110V/AC220V, 1phase | AC220V/AC380V, 3phase |
| Generator | Build-in | External |
| Generator Voltage | AC110V / 220V 1phase |
| Features | Multi-direction castors with brake;
1 year warranty |
Q: How to choose suitable frequency?
As with the cleaning chemistry and its properties, the choice of
frequency is also critical to your cleaning application.
The size of the cavitation bubble determines the amount of energy
released at implosion. This is governed by the frequency of the
ultrasonic generator/transducer set. Higher frequencies generate
smaller-sized bubbles.
A larger cavitation bubble releases more energy on implosion
resulting in a more intense cleansing action. A smaller bubble has
a gentler impact. As a general rule of thumb, high frequency is
good for fine particles and cleaning of very small features on
substrates while the lower frequency is suitable for heavy and
coarse contaminants.
