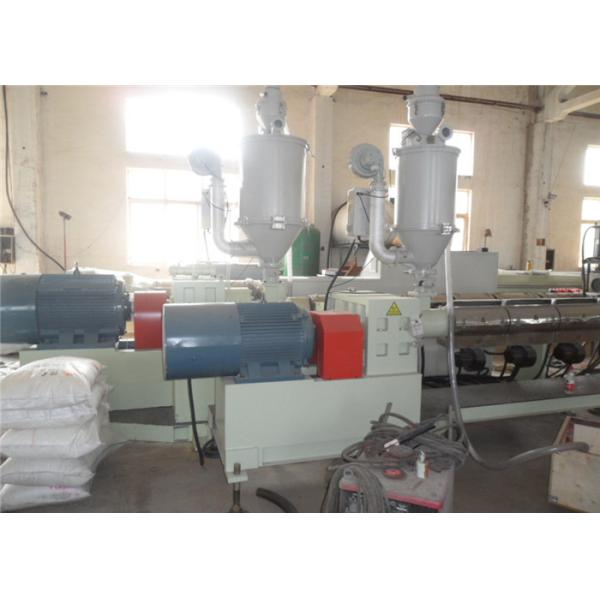

Plastic Board Extrusion Manchine , PVC Board Production Line ,
Plastic Board Extrusion Process
Quick detail:
Application of PVC Hard-surface Foam Board Production Line making
machine
1. Advertisement; Signage; POP; Cupboard (kitchen); Furniture board
like table , desk, under the sun table.
2. Marine (seating, covers, shelving, cabinets, stairs, electronics
& wall panels, door etc. ); Water park; Seashore wet-proof
facility; Various inter layers; Decoration board, upholstery for
train, car and many more.
3. The final products can use under the sun, beside the water, in
the raining , can installed in the soil directly . it has the
advantages of plastic and wood.
Description:
1.Technological process:

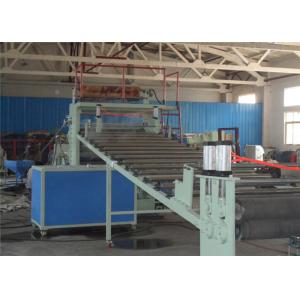

Plastic sheet extrusion machine -----Extrusion line-----Calibration
unit-----Haul off unit-----Cutter-----Laminating machine etc.
2. This machine consists of: a. SJSZ80/156 b. Mould c. calibration
foming table d. cooling bracket
e. haul off f. cuutting machine d.stacker
3. Architecture: such as building wall board, decoration board,
housing, office, public building interlayer, commercial decoration
shelf, non-dust room board, ceiling plate, etc.
Advertisement: such as screen printing, computer lettering, ad
board, etc.
Industry: such as chemical industry antisepticizing project,
thermoforming, for refrigeratroy, for temperature keeping, for
environment protection, etc.
Other applications: such as mould plate, sports equipment, breeding
equipment, seashore wet-proof facility, water-fast material, art
material, various interlayer, etc.
Equipment list
| Name | Description | DETAILS |
| 1 | SJSZ 80/156 Conical twin Screw Extruder | ABB frequency converter, |
|
| SIEMENS contactor, OMRON Japan |

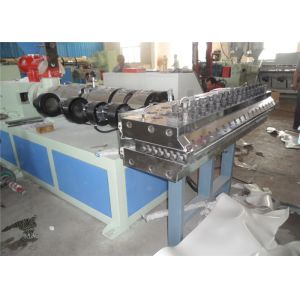

| 2 | Mould | hanger type extruding mould “EKO” |
| 3 | Foaming Machine | 4 phase calibrating device(hydraulic) |
| 4 | Cooling tank and bracket | Length:6000mm + Trimming knife:3 sets |
| 5 | Haul-off unit Gear transmission | 8 couples |
|
| (Cylinder clamping and loosening) |
| 6 | Automatic Cutting unit | 1set (controlled by ABB inverter) |
| 7 | Stacker machine | 1set |
| 8 | Colling Chiller 20P | 1set |
Application:
PVC foam board production line is mainly used to produce kinds of
pvc foam plates( include free and crusted foam plate, namely soft
and hard plate). PVC foam board can be used like the wood and is a
good material for making furnitures, widely used in decoration,
building, furniture, advertisement etc.
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000
working hours.
4) Our expert will answer any inquiry within 48 hours and it will
be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and
testing the lines.
7) The seller provides you with complete technical support
documents and the relative drawings of the electric components
written in Chinese and English.
