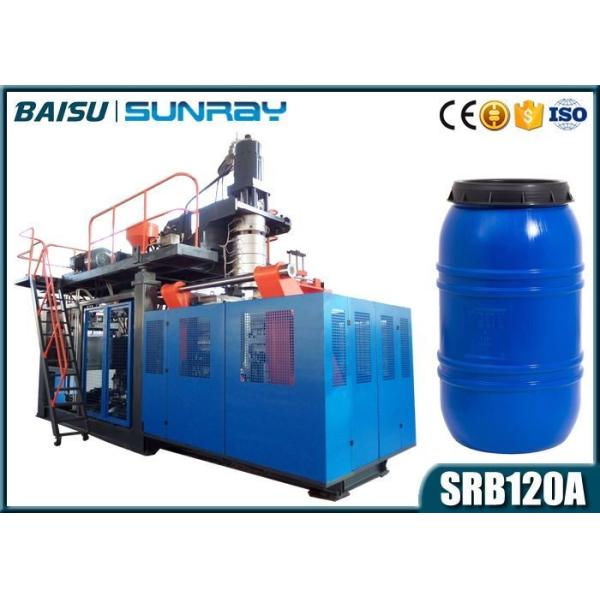

200 Liter Water Tank Blow Moulding Machine Accumulating Head
SRB120A , 200L Plastic Drum & Barrel Making Machine , 220L
Extrusion Blow Molding Machine
QUICK VIEW

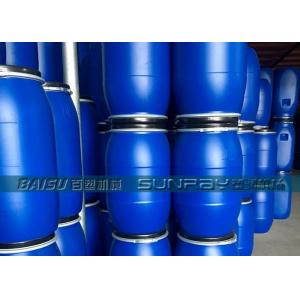

1. SRB120A is 250L hdpe drum making machine, specially used for
100~230L open top drums.
2. The output for 6.5KG 200L thread neck drum is 24 Pcs/hour, for
7.5KG locking ring drum is 20 Pcs/hour.
3. Energy saving, mature hydraulic and electric design, low problem
rate to reduce your production cost.
|
TECHNICAL PARAMETERS
| Machine Model | Fixed Clamping Accumulating Head |
| Max Product Volume | 250 L |
| Machine Weight | 22.5 Tons |
| Machine Size | 6.8*4.3*6.2 m |
| Screw Diameter | 100 mm |
| Plasticizing Capacity | 230 Kg/hour for HDPE |
| Clamping Force | 800 KN |
| Platen Size | 1300*1400 mm |
| Platen Opening Stroke | 600-1600 mm |
| Max Mould Size | 950*1500 mm |
| Accumulating Volume | 24 L |
| Max Ejection Weight | 18 Kg |
| Max Product Weight | 12.5 Kg |
| Max Die Diameter | 500 mm |
| Total Power | 173.25 KW |
| Average Energy Consumption | 65 KW |

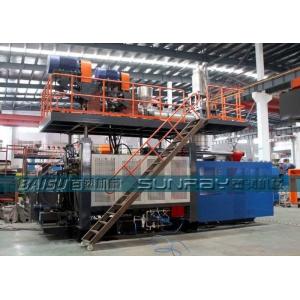

Click picture above to see SRB120A making 2 layer 200L drum
PRODUCTION ARRANGEMENT
1. Machine Size: 6.8x4.3x6.0 m
2. Production Area: 12.5x7.5 m
3. Minimum Workshop Height: 7 m
4. Air Supply Requirement: 1.6m3/min, 0.8Mpa
5. Water Supply Requirement: 20 Tons
6. Machine Power Consumption: 65 KW
7. Production Line Power Consumption: 106 KW
8. Whole Line Electricity Arrangement: 800 Amps
9. Minimum Workers Number: 3 Workers
|
MACHINE FEATURES
► Control Unit: WISETECH total machine programmable controller
controller and ture colorful touch panel. English parameter process
setting, state monitoring and products counting are convenient and
intuitionistic. PLC automatic temperature control model.
► Hydraulic Unit: It adopts international famous Japan YUKEN brand
hydraulic valve and seal, proportional control. And has features of
high stationarity and reliability, accurate operation, long
longevity, quick response and so on.
► Extrusion Unit: Hard gear surface decelerator; famous Delta
inverter adopts Italian technology; Screw speed regulation adopts
variable-frequency speed regulation control system. It has the
features of stable rotate speed, powerful power, energy-saving and
so on. Mixing screw has wide applicability to raw materials and the
plasticization quality is even better. Energy-saving machine barrel
and A-alloy heaters are adopted for heating
► Die Head Unit: With single cylinder material-center-in
accumulator head, is smooth and dependable. This die head adopts
German technology and is made by special imported steel.
► Clamping Unit: Adopts fixed mould open-closing system,fast and
balanced.
► Blow Fitting Unit: Down blowing fitting is equipped.
► Lifter Unit: Four turbine reducer liter, lifting balance, quick,
stable.
► Electrical Components: All of the electrical components are made
in Japan and Taiwan.
