1 channel Micphone audio with 1 channels Banlanced line-level audio over fiber converter

    Buy cheap 1 channel Micphone audio with 1 channels Banlanced line-level audio over fiber converter from wholesalers

    Buy cheap 1 channel Micphone audio with 1 channels Banlanced line-level audio over fiber converter from wholesalers
    • Buy cheap 1 channel Micphone audio with 1 channels Banlanced line-level audio over fiber converter from wholesalers

    1 channel Micphone audio with 1 channels Banlanced line-level audio over fiber converter

    Ask Lasest Price
    Brand Name : Beyond Technology
    Certification : CE,FCC,Rosh
    Model Number : BY-2A-MicLSM001
    Price : Negotiable
    Delivery Time : 1-7 working days
    Payment Terms : T/T,Paypal,100% payment before production
    Supply Ability : 50000 pairs per month
    • Product Details
    • Company Profile

    1 channel Micphone audio with 1 channels Banlanced line-level audio over fiber converter

    Mic & Line Level Audio To Fiber Optic support 1 ch Mic level and 1 ch Line level 16-bit digitally encoded broadcast quality balance audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

    Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

    Specifications

    Opitcal:


    Wavelength

    1310nm&1470nm~1610nm

    Output Power

    -14~ -8dBm / -5~0dBm

    Optic fiber

    50/125u multimode,62.5/125u multimode,9/125u single mode

    Rx sensitivity

    -30dBm

    Optical connector

    FC,ST,SC (optional)

    Distance

    0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)


    Mic level & Line level Balance Audio:


    Input Connector

    XLR(female)

    Output Connector

    XLR(male)

    Mic level Audio

    Number of Channels

    Input:1

    Input Impedance

    2k Ohm

    Dynamic Range

    60dB

    Line level Audio

    Number of Channels

    Input:1,Output:2

    Input / Output Impedance

    10K Ohm

    Input capacitance LINE inputs

    10 pF

    Max input/output voltage

    3.0Vp-p

    Frequency Response

    10 Hz~24kHz @±3dB

    Sample Rates From

    48kHz

    SNR

    > 80dB


    Electrical & Mechanical:


    Input Power Requirements:

    DC 5V@2A

    Power Adapter:

    AC 90V~240V

    Power Consumption:

    < 5W

    Stand-Alone Dimensions:

    168mm × 154mm × 45mm

    Shipping Weight:

    (include Transmitter & Receiver ) 2.5kg


    Environmental


    Operating Temperature:

    -20°C ~ +75°C

    Storage Temperature:

    -40°C ~ +85°C

    Relative Humidity:

    0% ~ 95% (non-condensing)

    MTBF:

    >100,000 hours


    Standalone Dimensions:

    Mic & Line Level Audio To Fiber Dimensions

    Audio connection diagram

    Mic Level & Line Level Audio To Fiber connection

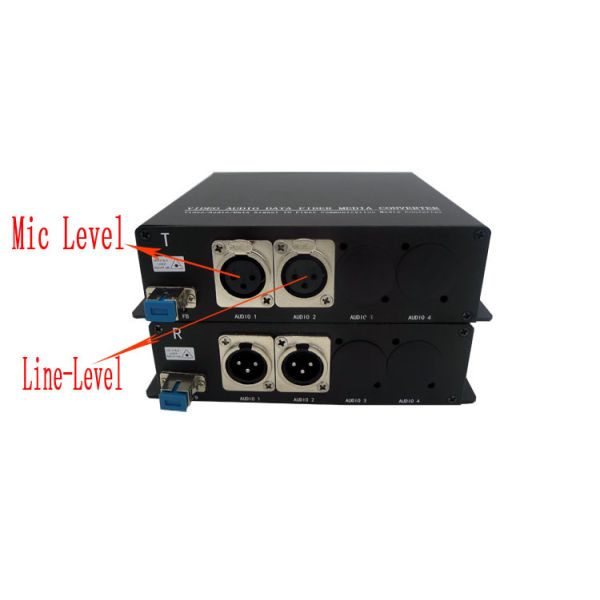

    Quality 1 channel Micphone audio with 1 channels Banlanced line-level audio over fiber converter for sale
