Full Hydraulic Construction Tunneling Drilling Rig

Features:
1. Reasonable technical parameter assures more efficient drilling performance.
2. Fully hydraulic drive, top-drive head rotation, feeding and hoisting are all done by ration pump and ration motor which composite independent open hydraulic system, which is simple, advance, easy to use and maintain.
3. The main hydraulic components are imported from world famous hydraulic manufacturers, two-step filtering, improving the hydraulic system reliability.
4. Newly-designed overall structure, three level rotating speed, different rotation speeds can be used by equip different top-drive head hydraulic motor accordingly to suits different drilling demands.(detailed information see table 1)
5. Light weight, easy to be moved, assembled, maintained. Especially suitable for drilling works in tunnel and on the frame.

Applications:
KDG-30H hydraulic drilling rig is a multi-function drilling rig developed aiming at grouting drilling for hydro-power station. It also can be used for timbering drilling, penetration-proof, blasting and crag/side slope geological disaster controlling hole drilling. This drilling rig is mainly suitable for hard rock drilling with diamond bit/PDC bit as well as DTH drilling.

Main Specification:
Drilling method: Diamond drill bit, PDC bit and DTH drilling
Drilling capacity: 30m (hole diameter: 75mm); 20m (hole diameter: 91mm)

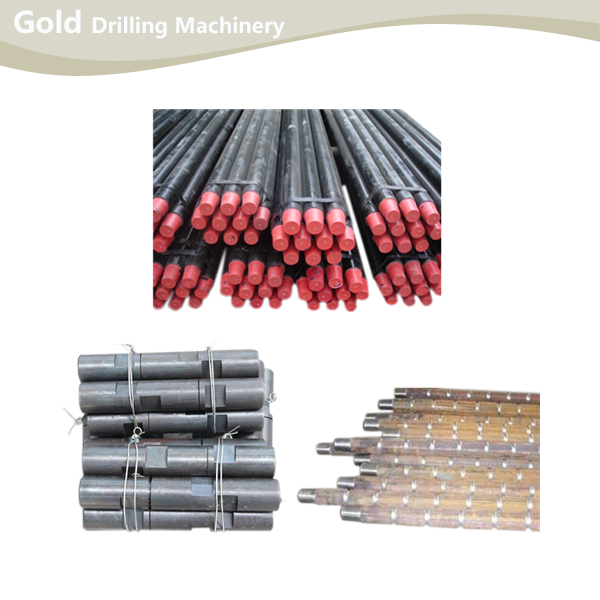

Drill rod: Φ42 * 1000/Φ50 * 1000
Top-drive head: Stroke 1200mm
Max. Push/pull force: 14kN
Feed and hoist speed: 0-0.3m/s
Hydraulic system: Triple gear pump, ration motor
Power unit Electric motor: Y180M-4 (speed: 1470 r/m; power: 18kw)
Mast length: 2100mm
Detachment weight: Mast and top-drive head 135kg; control panel 50kg; wheeled power station 280kg
