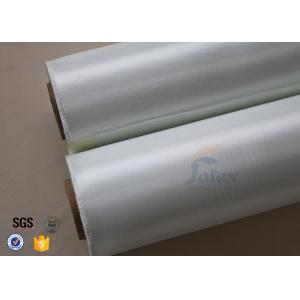

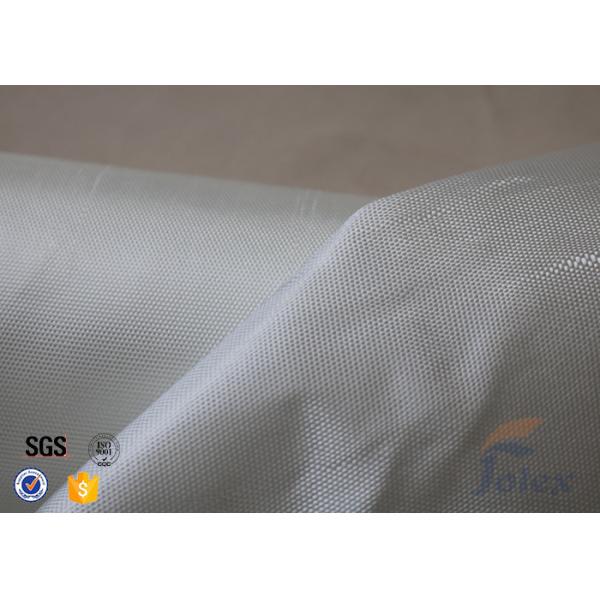

Surfboard Fiberglass Fabric / 4oz Transparent Glass Fiber Cloth
Fiberglass woven cloth are woven from yarns of glass filaments.
There are two types of glass that are used for Surfboard fabric,
E-glass and S-glass. The chemical composition of the glasses is
different and yield different properties. E-glass is the most
common glass fiber and is produced in huge quantities and is
inexpensive. S-glass is produced in smaller quantities and is more
expensive but has higher physical strength properties than E-glass.
The tensile strength of S-glass is about 50% higher than e glass
cloth and it is 25% stiffer in flex. We have found that using
S-glass on the decks of boards reduces heel dings and prolongs the
life of the board.
Plain Weave:
The plain weave consists of yarns interlaced in an alternating
fashion one over and one under every other yarn. The plain weave
provides good fabric stability but is generally the least pliable.
Twill Weave:
The twill weave is more pliable than the plain weave and has better
drapability while maintaining more fabric stability than a four or
eight harness satin weave. The weave pattern is characterized by a
diagonal rib created by one warp yarn floating over at least two
filling yarns.
| Item | Weave | Count (Warp/Fill) | Weight | Thickness | Strength (Warp/Fill) |
| JT8120W-12-70 | Plain | 24/22 | 120g/m2 | 0.12mm | 170/140(lbf/in) |
Fiberglass Fabric Has Many Features:
- Good performance in chemical corrosion resistance
- Plain weave, even thickness and low fuzz
- High strength in both warp and weft direction
- Easily impregnated with resin, high cohesive strength
- E-Grade Fabric has excellent electricity insulation property
surfboard fiberglass cloth also have a finish on them, the finish
is there to help the resin bond to the glass fabric and to help it
wet out completely. Early fiberglass and foam surfboards were built
with existing fiberglass boat fabrics, which were finished with a
volan finish. The volan finish produces a "coke bottle" green tint.
Modern surfboard fabrics use a silane finish which goes absolutely
clear. We usually stock volan fabrics but call for availability.
The silane finish that we carry is compatible with both polyester
and epoxy resins.
Model Number | Weight(g/m2) | Thickness(mm) |
106 | 24.4 | 0.033 |
1080 | 46.8 | 0.053 |
2116 | 103.8 | 0.094 |
7629 | 210 | 0.18 |
7642 | 227.8 | 0.254 |
1037 | 23 | 0.027 |
1067 | 30.7 | 0.035 |
7637 | 228 | 0.224 |
7667 | 218 | 0.188 |
7642-H | 285 | 0.24 |
