Digital Superficial Rockwell Vickers and Brinell Universal Hardness
Testing Machine With Built-In Printer
Technical Data Download: iqualitrol Hardness Tester iUniv-187.5D
Brief Introduction:

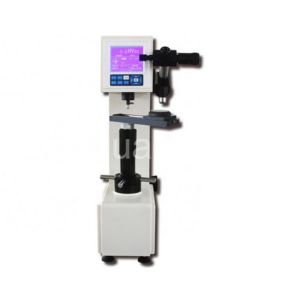

iUniv-187.5D Digital Brinell Rockwell & Vickers hardness tester
equips with a newly-designed large displaying screen with good
reliability, excellent operation and easy reading.
iUniv-187.5D has Brinell, Rockwell and Vickers three test modes and
7 level of test forces, which can test several kinds of hardness.
Test force loading, dwell, unload adopts automatic shifting for
easy and fast operation.
It can show and set the present scale, test force, test indenter,
dwell time and hardness conversion.
Technical Specifications:
| Model | iUniv-187.5D |
| Rockwell Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Brinell Test Force | 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf
(980.7N), 187.5kgf (1839N) |
| Vickers Test Force | 30kgf (294.2N), 100kgf (980.7N) |
| Indenter | Diamond Rockwell Indenter, Diamond Vickers Indenter, ф1.588mm, ф2.5mm, ф5mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | LCD Screen Display |
| Test Scale | HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5,
HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100 |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N,
HR45N, HR15T, HR30T, HR45T, HS, HBW |
| Magnification | Brinell: 37.5×, Vickers: 75× |
| Resolution | Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm |
| Dwell Time | 0~60s |
| Data Output | Built-in Printer, RS232 Interface |
| Max. Height of Specimen | Rockwell: 175mm, Brinell: 100mm, Vickers: 115mm |
| Throat | 165mm |
| Power Supply | AC220V/50Hz1Ph, AC110V/60Hz/1Ph |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 |
| Dimension | 520×240×740mm, Packing Dimension: 650×370×980mm |
| Weight | Net Weight: 80kg, Gross Weight: 105kg |
Functions:
1, Support Brinell, Rockwell and Vickers three test modes;
2, Support hardness Conversion scales of different kinds of
hardness;
3, Test results can be saved for reviewing or be printed out,
4, Data statistics automatically calculate of maximum, minimum and
average value;
5, With RS232 interface for connecting to the computer.
Application Range:
Suitable for hardened and surface hardened steel, hard alloy steel,
casting parts, non-ferrous metals, various kinds of hardening and
tempering steel and tempered steel, carburized steel sheet, soft
metals, surface heat treating and chemical treating materials etc.
Packing List:
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc |
| Diamond Vickers Indenter | 1 pc | ф1.588mm, ф2.5mm, ф5mmBall Indenter | each 1 pc |
| Slipped Test Table | 1 pc | Middle Plane Test Table | 1 pc |
| Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| 15× Digital Measuring Eyepiece | 1 pc | 2.5×, 5× Objective | each 1 pc |
| Microscope System (include the inside light and outside light) | 1 set | Hardness Block 150~250 HBW 2.5/187.5 | 1 pc |
| Hardness Block 60~70 HRC | 1 pc | Hardness Block 20~30 HRC | 1 pc |
| Hardness Block 80~100 HRB | 1 pc | Hardness Block 700~800 HV30 | 1 pc |
| Weights 0, 1, 2, 3, 4 | 5 pcs | Power Cable | 1 pc |
| Fuse 2A | 2 pcs | Horizontal Regulating Screw | 4 pcs |
| Level | 1 pc | Spanner | 1 pc |
| Screw Driver | 1 pc | Anti-dust Cover | 1 pc |
| Usage Instruction Manual | 1 copy | | |
The diamond penetrator is used for testing materials such as
hardened steels and cemented carbides. The carbide ball
penetrators, available with 1/16 inch, 1/8 inch, 1/4 inch, and 1/2
inch diameter, are used when testing materials such as steel-copper
alloys, aluminum and plastics to name a few.
Rockwell testing falls into two categories: Regular Rockwell
testing (e.g., C and B scales) and Rockwell superficial testing
(e.g., 30 N and 30 T scales).
High Rockwell hardness numbers represent hard materials and low
numbers soft materials.
