KDY-30G Multifunctional Hydraulic Drilling Rig for Treating
Dangerous Hillside
KDY-30H hydraulic drill rig is a multi-function drill rig developed
facing drilling grouting hole for hydro-power station. It also can
be used for drilling the hole of support, penetration-proof,
blasting; and treating dangerous rock and hillside. It is mainly
suitable for drilling hard rock with diamond bit and PDC bit, and
DTH drilling as well.

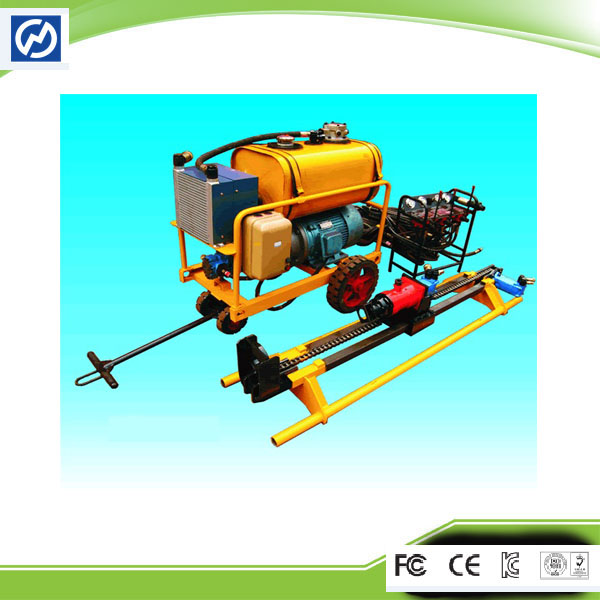

The picture of Hydraulic Drilling Rig
What's the feature of ourHydraulic Drilling Rig?
- Reasonable specification, assure more efficiently drilling
- Fully hydraulic drive, top-drive head rotation, feed and hoist are
all done by ration pump and ration motor which composite
independent open hydraulic system, it is simple, advance, easy to
use and maintain
- The main hydraulic components are from world famous hydraulic
manufacturers, two-step filtering, to assure the reliability of the
hydraulic system
- Newly-designed structure, three speeds, and can get different
speeds through changing oil motor of top-drive head, to satisfy the
needing of different drilling technology
- Light weight, easy to move, re-assembly and maintain. Especially
suitable for drilling in tunnel and on the frame
What is the technical parameter of ourHydraulic Drilling Rig
Drilling method: diamond drill bit, PDC bit, and DTH drilling
Drilling capacity: 30 m(hole dia.: Φ75 mm); 20 m (hole dia.: Φ91
mm)
Drill rod: Φ42 x 1000 mm or Φ50 x 1000 mm
Top-drive head: stroke: 1200 mm
Max. push/pull force: 14 kN
feed and hoist speed: 0-0.3 m/s
Hydraulic system: triple-gear pump, ration motor
Power unit: electric motor Y180M-4 (speed: 1470 r/min; power: 18
kW)
Detachment weight: mast and top-drive head 135 kg
control panel 50 kg; wheeled power station 280 kg
