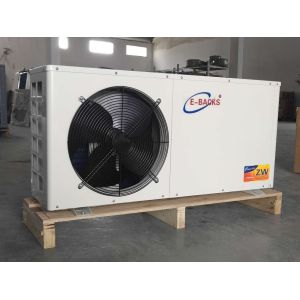

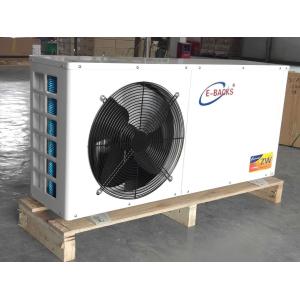

Air Heat Pump,House heating and sanitary hot water

Name: Air Heat PumpHouse heating and sanitary hot water
Brand: E-backs
Price: 1 USD

Ask Lasest Price
Brand Name :	E-backs
Model Number :	ASH07
Delivery Time :	within 15 days after receive deposit
Supply Ability :	20 Set/Sets per Day
Payment Terms :	L/C,T/T

Add to Cart

Product Details
Company Profile

Air Heat Pump,House heating and sanitary hot water

Air Heat Pump
1.10 year's experiences
2.ISO, CCC and CE approval
3.High COP, EER, 75%Energy-Saving
4.High quality

Air Heat Pump
1. 10 year's experiences
2. ISO, CCC and CE approval
3. High COP, EER, 75%Energy-Saving
4. R404a is suitable for low ambient temperature

5. Automatical defrosting
6. Automatical high/low pressure protection
7. Safety, Easy installation and operation

8. Can be working at -20°C to 45°C

Structure:

1. Condenser of air heat pump:

2. Evaporator of air heat pump: 3. Electronic expansion valve:

4. Compressor:

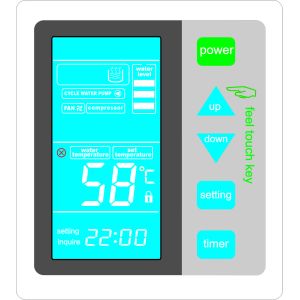

5. Control Panel:

Our Company

Air Heat Pump parameter table:

Item(unit)	ASH07
Rated input power(Kw)	1.84
Rated heating capacity(Delivered)(Kw)	7
Rated voltage(V)	220
Rated frequency(Hz)	50/60
Rated current(A)	8
Rated outlet water temperature(°C)	55
Maximum outlet water temperature (°C)	60
Water flow(L/H)	2000
Circulating water pipe diameter(mm)	Dn25
Circulating water pipe interface	Soft connectiong(internal thread)
Packing Dimensions(mm)	1200380720
Weight(Kg)	78
Level of security	IP×4
Electric shock protection grade	1 grade
Noise(Db)	≤40
Refrigerant	R417A/R407C/R404A/R22/R134A
Compressor	Panasonic
Condenser	Double Pipe heat exchanger
Evaporator	Internal thread copper pipe and wave hydrophile aluminum foil
Fan motor	Axial flow fan/Centrifugal fan
Throttle units	Electronic expansion valve
Control System	Multi-Control

Remarks: the test of conditions of above parameter: dry bulb temperature:20°C,

wet bulb temperature:17°C, inlet water temperature:15°C, outlet water temperature:55°C.
