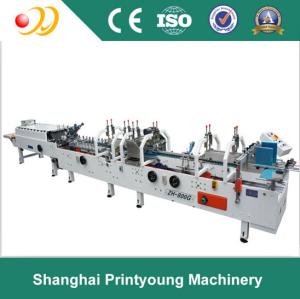

Crash Lock Bottom Folder Gluer Machine With Remote Control
Airplanes
Quick Details
ZH-800G/880G/1000G is the latest multi-functional crash lock folder
gluer; it made indelible contributions to the firld of folder
gluer. It comblnes a variety of folder gluer features, the
general-paste, pre-folded edges with crash lock bottom. It's
powerful, widely usage, easy operating and adjusting boxes.
Especially for the current packaging and printing
industry-competitive business, the delivery of the tight schedule
offers great convinience, so the packaging equipment is ideal for
the printing industry. It is widely used in processing medecine
box, wine box, cosmetics box, electric appliances, packing box,
etc. ZH-G was awarded two patents.
Features
Line Speed:0-220m/min adjustable
Paperboard:210-660gsm paperboard
Box forming;both sides prefold,fold from either side,either sdide
glue,bottom glue.
Paper board feeding:Automatic
way of folding:1st,2nd and 4th fold 180°,3rd folds 135°
Gluing:four stations,2 upper stations,2 lower stations.Each lower
station has a grindingwheel for cleaning UV varnish and ink off the
flap before gluing.
Glue type:water solvable
Weight:1110KG/1300KG
Dimension:8000*900*1300(mm)
Auto Counting Range:0---999999 No.with batching facility
New Features
Pressure table : Independent speed control,With Cover
Trombone : Wire-controlled jogging to change fixed wallboard
The place of paper board feeding is embedded
Bale no disassembly,long service period
line box crash lock bottom
| Model | Box type | (A Max) | (A Min) | (B Max) | (B Min) | (C Max) | (C Min) | (D Max) | (E Min) |
| ZH-800G | Straight line box(I) | 560 | 106 | 50 | 65 | 270 | 50 | 7 | 6 |
| Pre-fold box(I) | 560 | 180 | 500 | 65 | 270 | 90 | 10 | 6 |
| Crash lock bottom box(I) | 560 | 160 | 500 | 65 | 270 | 80 | 40 | 6 |
| ZH-880G | Straight line box(I) | 660 | 110 | 500 | 65 | 320 | 50 | 7 | 6 |
| Pre-fold box(I) | 660 | 180 | 500 | 65 | 320 | 50 | 7 | 6 |
| Crash lock bottom box(I) | 660 | 160 | 500 | 65 | 320 | 80 | 50 | 6 |
| ZH-1000G | Straight line box(I) | 760 | 130 | 600 | 80 | 370 | 60 | 10 | 8 |
| Pre-fold box(I) | 760 | 180 | 600 | 80 | 370 | 90 | 15 | 8 |
| Crash lock bottom box(I) | 760 | 180 | 600 | 80 | 370 | 90 | 60 | 8 |
