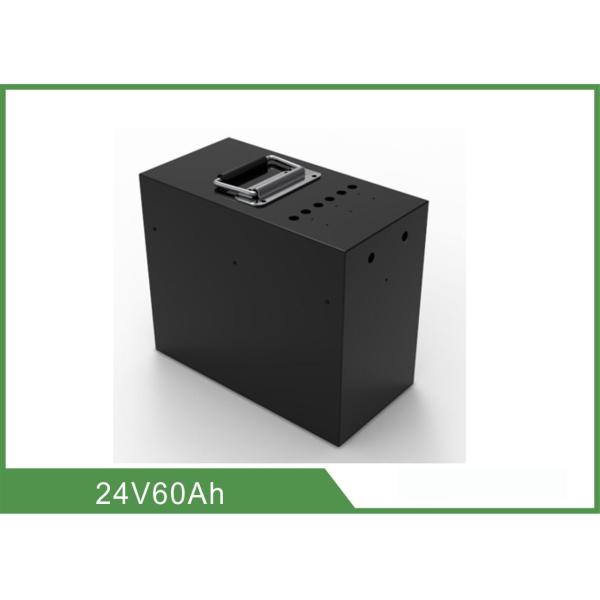

Portable Rechargeable Lithium Iron Phosphate Battery 24V 60Ah

Name: Portable Rechargeable Lithium Iron Phosphate Battery 24V 60Ah
Brand: Topband
Price: 1 USD

Ask Lasest Price
Brand Name :	Topband
Model Number :	TB1260F-S108A_00
Certification :	CE, MSDS
Price :	Negotiable
Supply Ability :	450Mwh/year
Delivery Time :	2~4weeks for samples; 4~6weeks for mass production
Payment Terms :	L/C, T/T

Add to Cart

Product Details
Company Profile

Portable Rechargeable Lithium Iron Phosphate Battery 24V 60Ah

long life cycle( 2000cycles @ 100%DOD)
with built-in PCM/BMS protection
super quick charge/discharge performance
safe pressure valve design ( no explosion, no fire)
high energy density
low self-discharge( <3% per month)
1/3 weight & 1/2 volume of lead acid battery
eco-friendly
high consistency
no memory effect
easily replace lead acid battery

1. General Information

This specification defines the performance of rechargeable LiFePO4 battery pack TB1260F-S108A manufactured by Shenzhen Topband Battery Co., Ltd, describes the type, performance, technical characteristics, warning and caution of the battery pack.

2. Specification

NO	Items		Description
Normal Specification
1	Nominal Voltage		12.8V
2	Normal Capacity		60Ah
3	Internal Resistance		≤40mΩ
Standard Charge
4	Battery operation temperature range @charging		0~45℃
5	Normal charge voltage		14.6±0.1V
6	Recommended float charge voltage(for Standby use)		13.8±0.1V
7	Allowed MAX charge current		50A@Battery initial Temp 25±5℃
8	Recommended charge current		≤30A
Standard Discharge
9	Battery operation temperature range @discharging		-20~60℃
10	Output Voltage Range		8.0~14.6V
11	Allowed discharge current		50A withstand 30min @Battery initial Temp 25±5℃
12	Recommended discharge current		≤50A
13	Pulse discharge current		170A withstand 3s
14	Discharge Cut-off voltage		8.0V
Mechanical Characteristics
15	Dimension		Length 260±2mm
			Width 167.5±2mm
			Height 211±2mm
16	Weight		8.5±0.5Kg
Storage
17	Storage Temperature & Humidity Range	Short: within one month	-20~35℃, 45~75%RH
		Long term: above one month	-10~30℃, 45~75%RH
18	Self-discharge rate	Residual capacity	≤3% per month; ≤15% per year
		Reversible capacity	≤1.5%per month; ≤8% per year

3. Electrical Characteristics & Test Condition

Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.

NO	Items	Criterion		Condition
1	Internal Impedance	≤40mΩ		Test the internal resistance of 50% SOC battery pack with 1 kHz AC internal resistance test instrument.
2	Capacity	≥58.8Ah		Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 180 minutes, you can stop and define the Discharging current*time value (Ah) as battery capacity.
3	Short circuit protection	Automatically cutoff discharging when short circuit, and release after remove the lead.		Connect the positive and negative of this battery pack through a lead with the resistance less than 5mΩ.
4	MAX charge Current	50A		Charging with this current for more than 0.5h and the added temperature of battery pack less than 20℃.
5	MAX discharge Current	50A		Discharging with this current for more than 0.5h and the added temperature of battery pack less than 35℃.
6	Cycle life (DOD%100)	≥2000cycle		Discharge with the current of 0.5C until it can’t discharge, and then rest it for 1h. Charge the battery following CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
7	Discharge Temperature Characteristics	-20℃	≥70%	At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage. Record the ratio between discharging & charging capacity.
		0℃	≥80%
		25℃	100%
		55℃	≥95%
8	Charge Retention ability	remain capacity≥90%		Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.

4. Circuit Protection

The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

Test item	Content	Criterion
Over charge	Over-charge protection for each cell	3.80±0.03V
	Over-charge release for each cell	3.60±0.05V
	Over-charge release method	Under the release voltage
Over discharge	Over-discharge protection for each cell	2.00±0.05V
	Over-discharge release for each cell	2.30±0.05V
	Over-discharge release method	Charging
Over current	Discharge over current protection	170~220A
	Protection delay time	0.5~1.5s
	Over current release method	Release after cutoff the load.
Over Temperature	Battery over temperature	Protection @65±5℃
Over Temperature	Battery over temperature	Release @50±5℃

5. Dimensional Drawing
