Expressway Guardrail forming machine For Road Construction
MTC MACHINERY:Highway Guardrail forming Machine,Crash Barrier Forming Machine,Guardrail Forming Machine
Introduction of Guardrail Roll Forming Machine,Crash Barrier Roll
Forming Machine,Highway Guardrail Roll Forming Machine, Expressway
Guardrail Roll Forming Machine:

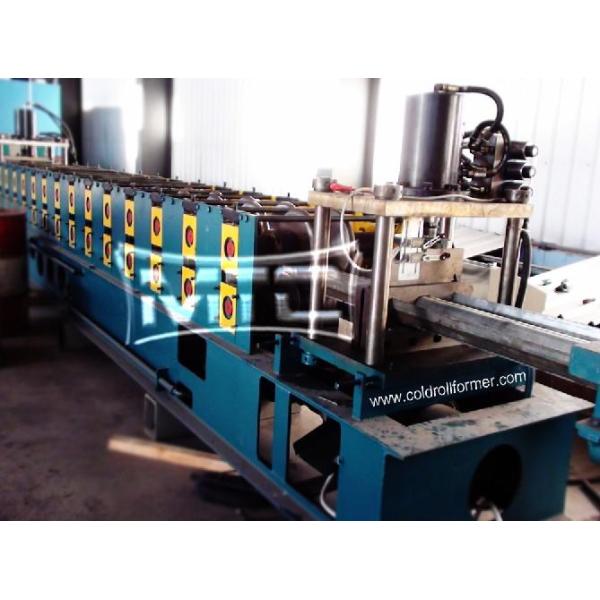

This guard rail roll forming machine is comprised of mechanic
decoiler, guiding and feeding equipment, leveling device,
pre-punching hydraulic device, roll forming unit, post hydraulic
mould cutting device, hydraulic station, PLC control system and
unloading rack.
We can supply the machine producing two-wave guardrail and
three-wave guardrail
Production processing Decoiling---flatting---feeding &
punching---forming---cutting-to-length---collecting Equipment
struction introduction. This production line may produce the cable
tray, the different sizes through the replacement of punching
moulds to complete. Forming machine is combined and adjustable, one
set of combined rollers complete all cable tray products, the
change size through adjust distance of rollers to complete.
Technical parameter:
1. Matching material: Feed width: 480mm,Q235 galvanized steel strip
2. Material thickness: 2-4mm
3. Main motor power for forming: 22kw
4. Forming speed: 10-12m/min
5. Hydraulic station power: 11 kw
6. Roll forming stations: About 17
7. Hydraulic pressure: 20 mpa
8. Controlling system: PLC
9. Total weight: About 25 Ton
Additional information:
Material of forming rollers: GCr15 bearing steel with quenched
treatment
