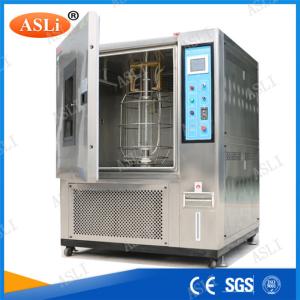

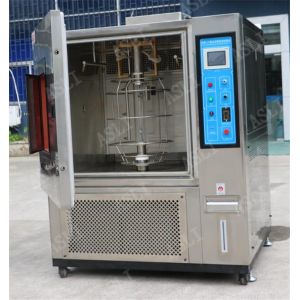

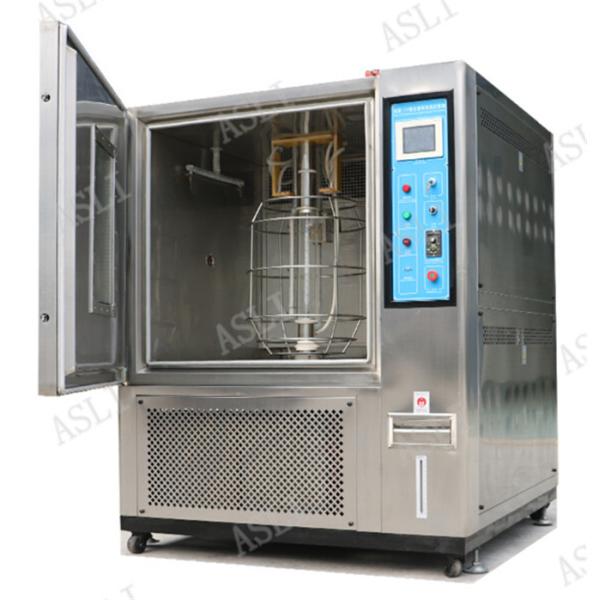

Xenon Accelerated Weathering Aging Test Chamber, Environmental Test
Chamber
Application:
Solar Radiation Xenon Lamp Accelerated Aging Test Chamber is a
comprehensive climate testing machine, it can do climatic aging
test, and also can do fading acceleration test under color effect
or color changed. The test range including: dying and finishing,
printing, leather, plastic, plyglass, painting, textile, printing
ink, rubber and also the industry relative color. Light fastness
and fade grade can be known in short time. Those materials exposed
at simulated sunlight to evaluated the material's light fastness
performance. To simulate and strengthen the test according to light
energy, temperature, rain fall or condensation, humidity, .etc
these main climate factors. Adopt simulated sunlight spectrum's
Xenon arc light to create destructive waves under different
environment. It can be used for choosing new materials, improving
existing materials, or assessment of durability change after
material composed.
Xenon Lamp Accelerated Aging Test Chamber Technical Parameters:
| Model | XL - 1000 |
| Internal Dimension WxHxD (mm) | 1000x1000x1000
|
| External Dimension WxHxD (mm) | 1500x2000x1400
|
| Tube Using Life (H) | 1500 |
| Tube Power | 1KW/6KW |
| Illumination Intensity | 340nm
0.35~0.6w/m2 | Full spectrum
1200±200w/m2 |
| Lighting Filter Type | Inner filter | Quartz |
| Outer filter | Quartz |
| Simulated Test Status | | Test samples: Explore under outer space |
| Cooling System | Water cooled or wind cooled |
| Temperature Control Range of the Test Cabinet | Black panel temperature : BPT 40~120ºC(±3ºC) |
| Black standard temperature :BST 38~120ºC(±3ºC) |
| Humidity Control Range of the Test Cabinet | Humidity when lighting: 20%R.H.~75%R.H. (± 5%R.H.) |
| Humidity when dark: 60%R.H.~95%R.H. (± 5%R.H.) |
| Rotating Speed of the Samples Holder(RPM) | 1~5 adjustable |
| Diameter of Sample Shelf(mm) | 500±50 |
| Sunlight Exposure Cycle | 0.01~999 hours 59mins |
| Raining Period/ Time | Raining Period:1~240mins,discontinuous-type, adjustable |
| Raining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa |
| Spray water flow(L/min) | 1~2.4 |
| Explore Area(cm2) | 7500 |
| Power | AC 380 V(±10%),50/60HZ ,3∮ 5 Lines |
xenon lamp accelerated aging test chamber features:
1. Advanced design technology and concept,
2. Excellent technology of producing and outstanding system of
quality management,
3. Xenon lamp tester can be the most realistic simulated solar
spectrum, including ultraviolet,
visible and infrared.
4. Be tested in the range of the full spectrum, necessary for most
textile sun and color fastness test.
5. To determine the color fastness and aging to sunlight, weather
resistance, etc.
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
