Watec WAT-231S2 1/3 CCD 540TVL BNC Y/C Eliminate Defect High Resolution Color Video Camera

Name: Watec WAT231S2 13 CCD 540TVL BNC YC Eliminate Defect High Resolution Color Video Camera
Brand: watec
Price: 1 USD

Ask Lasest Price
Brand Name :	watec
Model Number :	WAT-231S2
Delivery Time :	3days
Payment Terms :	T/T or PAYPAL

Add to Cart

Product Details
Company Profile

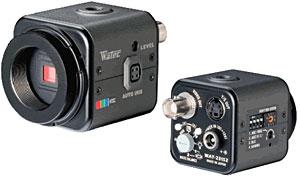

Watec WAT-231S2 1/3 CCD 540TVL BNC Y/C Eliminate Defect High Resolution Color Video Camera

The Watec WAT-231S2 is an ultra compact box CCTV camera with a 1/3" color CCD, a super high resolution of 540 TVL, and a good low light sensitivity of 0.05 lux. It also employs a number of electronic controls, among them AGC, MGC, and BLC, to compensate for a variety of lighting environments. Another important feature of this camera is auto white blemish compensation - a function that can detect and correct overly bright pixels in the image (up to 32 pixels). For flexible connection options, the Watec WAT-231S2 camera features both a composite (BNC) and S-video output port. A standard CS lens mount offers compatibility with industry CCTV lenses including those with auto iris DC or Video capabilities.

Watec WAT-231S2 Features:

* Watec WAT-231S2 with 1/3" CCD,
* The effective pixel 380k (N) / 440K (P),
* Internal synchronization,
* Scanning System: 2:1
* Video Output: 1Vpp-75Ω,
* Horizontal Resolution : 540TVL,
* Minimum illumination: 0.05Lux F1.2;
* BNC & Y/C double output,
* The lens mount can be fine-tuning,
* Multi-function, high sensitivity,
* Image defect elimination function;
* Ultra compact (1.7 x 2") and lightweight (4.9 oz) camera
* High image quality with 1/3" CCD and 540 TVL of resolution
* Auto and manual white balance and gain settings
* Supports auto iris DC and Video lenses
* White blemish compensation for adjusting overly bright pixels
* Watec WAT-231S2 good performance.

Watec WAT-231S2 Specifications:

Model		WAT-231S2(NTSC)	WAT-231S2(PAL)
Image Sensor		1/3" CCD
total pixels		811(H)*508(V)	795(H)*596(V)
Effective Pixels		768(H)*494(V)	752(H)*582(V)
Pixel Size		6.35um(H)*7.4um(V)	6.5um(H)*6.25um(V)
imaging system		Ye, Cy, Mg, and G complementary color mosaic filters on chip
Synchronization mode		internal synchronization
Scanning system		2:1 interlaced scanning
video output		synthesize,Y/C：1.0 V(P-P),75Ω,imbalance
resolution ratio(H)		More than 540 TVL(Center)
minimum illumination		0.05lx. F1.2
S/N		More than 50dB(MGC=0dB,γ= 1.0)
AE Mode	Fixed	1/60 - 1/100 sec.	1/50 - 1/120 sec.
		1/250,1/500,1/1000,1/2000,1/4000,1/10000 sec.
	EI	1/60-1/100000 sec.	1/50-1/100000 sec.
		1/60 - 1/100000 sec.(flicker suppress)	1/50 - 1/100000 sec.(flicker suppress)
WB		ATW(color rolling less), PWB, MWB,Preset(3200K,4300K,5100K,6300K)
automatic gain control		High：0-38dB / Low：0-32dB
MGC		0-32 dB
Gamma Features :		γ≒0.45(ON)/γ= 1.0(OFF)
lens		Video /DC(EIAJ arrangement,Auto-select)
BLC		ON/OFF
Power voltage		DC + 12V + -10%
White defect correction		Up to 32 pixels
power consumption		2.1W(175mA)
Operating Temperature		-10 - +50℃(Frost-free knot)
Storage Temperature		-30 - +70℃(Frost-free knot)
Work /Storage humidity		Lower than 95％RH
Mount		CS (Adjustable back focus)
Weight		About 140G
