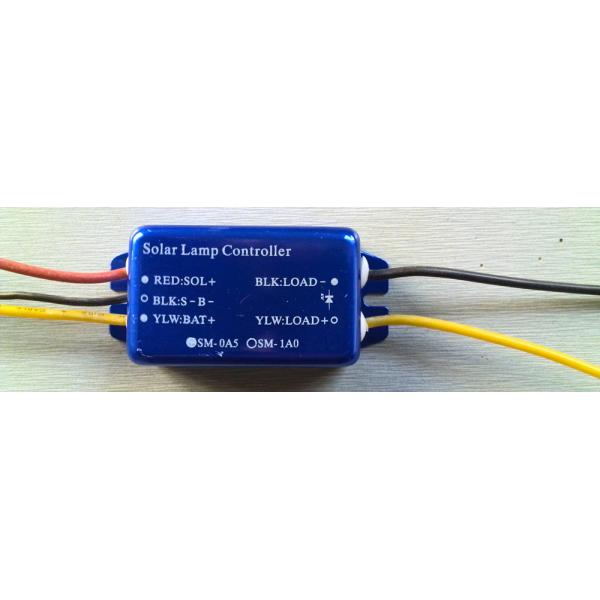

Mini solar charge controller of 0.5A 1A and 2A for solar garden lamp, solar warning light

Solar Lamp Controller Intergrated LED Constant Current Driver
Main Fetures:

l The running-parameters can be set via Infrared remote control

l 3.6V ,6V,7.2V and 12V rechargeable battery support(manual set it ,but not AUTO)

l Timing adjustment :1-12 hours,The 0 means load always on.

l Four-Stage LED Brightness Dimming:100%->50%->30%-50%
(can be manual set)

l Output current can be adjusted, range: 50-350mA

l The DAY-NIGHT switch-point can be adjusted ,range: 0-3V

l Overcharge and overdischarge protection for battery

l Reverse connection protection for solar panel

l NO Reverse connection protection for battery(connect carefully)

l NO Load short-circuit protection (connect carefully)

_2_Technique parameters

_3_Fourth-Stage Dimming Explain
The Fourth-Stage Dimming is core feature of SM-0A5.
In most case,We want more energy-saving at mid-night or late-night,because there are no one. The SM-0A5 provide Fourth-Stage light mode,every stage brightness of LED and timer can be set by IR Parameters Setting Device [SM-IR08]. Default the First-Stage brightness is 100%, Second-Stage brightness is 50%, Third-Stage brightness is 30%.Fourth-Stage brightness is 50%.By using Foruth-Stage Dimming you can reduce power consumption up to 50%!
Other note :The Fourth-Stage is Early-Morning Light .
Brightness(mA)

100%
50%
30% Timer(Hour)
First Second Thrid Fourth
