CNC Double Head Precision Cutting Saw LJZ2-CNC-500x4200

    Buy cheap CNC Double Head Precision Cutting Saw LJZ2-CNC-500x4200 from wholesalers

    Buy cheap CNC Double Head Precision Cutting Saw LJZ2-CNC-500x4200 from wholesalers
    • Buy cheap CNC Double Head Precision Cutting Saw LJZ2-CNC-500x4200 from wholesalers

    CNC Double Head Precision Cutting Saw LJZ2-CNC-500x4200

    Ask Lasest Price
    Brand Name : SOLTERRA
    Certification : ISO CE
    Model Number : LJZ2-CNC-500x4200
    Price : Negotiable
    Delivery Time : We will effect delivery within 14 days after receiving the deposits
    Payment Terms : 30%TT in advance and balance against shippinig advice
    Supply Ability : 15 Sets per month
    • Product Details
    • Company Profile

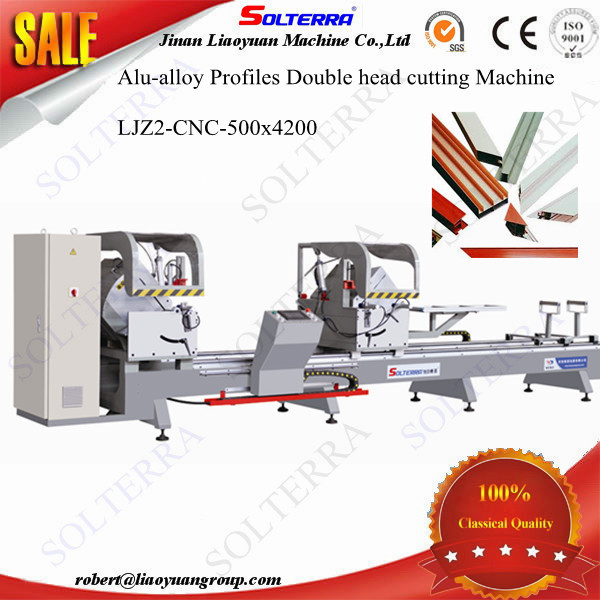

    CNC Double Head Precision Cutting Saw LJZ2-CNC-500x4200

    Features and Functions:

    1. Used for cutting aluminum profiles for door-window, curtain wall etc.

    2. The feeding system adopts the imported linear guide pair, with high accuracy and stability.

    3. Right head feeding adopts high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.

    4. Two saw heads are adjustable and cut profiles at 45°/ 90° freely.

    5. Imported carbide saw blade features accurate processing and high endurance.

    6. Imported linear guiding pair ensures steady processing accuracy.

    7. Saw blade rotates smoothly due to high accurate main spindle.

    8. Uniform speed feeding and smooth motion is due to air hydraulic clamping.

    9. Auto-opening shield makes the operation more safety.

    10. Middle auto-induction profile supporter and following profiles supporter made the loading and clamping convenient.

    Technical Parameter:

    Power supply

    380V 50Hz

    Cutting motor power

    2x2.2kW

    Cutting motor rotary speed

    2800r/min

    Air pressure

    0.5~0.8MPa

    Air consumption

    60L/min

    Blade specification

    Φ500xΦ30x4.4xZ120

    Cutting speed

    Stepless speed regulation 0~3m/min

    Max. cutting length

    4200mm

    Min. cutting length

    375mm

    Cutting width

    Max. 135mm

    Cutting height

    90°: max 300mm

    45°: max 200mm

    Max cutting section

    135x300mm

    Cutting angle

    90°, 45°

    Repeat locating length tolerance

    ±0.2mm

    Cutting profile surface plane

    ≤0.1mm

    Cutting angle tolerance

    Ra12.5µm

    Overall dimension

    5900x1300x1400mm
