We make acrylic bathtub forming machines, bathtub forming moulds
The acrylic bathtub/tray making line need the equipments as
follows,
1.acrylic bathtub forming machines--9800USD
2.bathtub forming moulds--about 650USD/piece
3.resin mixer--550USD/piece
4.resin spray gun with fiber chopper(automatic)--5500USD/set
5.bathtub edge trimming machine--5600USD/set

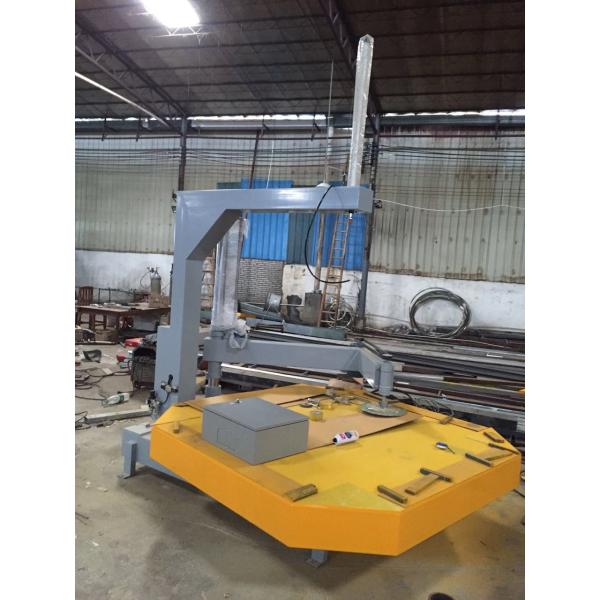

The detail information of the trimming machine:
The machine tool is a kind Of special equipment used for edge
trimming of bathtub in steam room Its worktable can be classified
into 2000×2000mm worktable and 2400×2400 worktable, which makes the
product adapt to edge trimming of bathtub of different sizes.
General grinding wheel blade, tdngsten carbide alloy saw blade and
special diamond grinding wheel blade may be used, which makes it
have wide application. Overall welding is applied and the worktable
is given stress treatment. The process precision is high. There is
no interface around the cylinder body. The machine bed can add
tumbler digital readout device according to requirements of
customers, which is the first choice for sanitary factory to update
equipments.
Main technical parameter
1 Dimension working table (L×W)…………………………2000×2000(2200×2200 or 2400×2400)mm
2 Maximum distance between work table center to vertical
arm………1500mm
3 Maximum distance between work table and pressure plate………….1120mm
4 Rotate speed of work table (adjustable)………………………………..0-2r/min
5 Maximum ascend and descend distance of the
tumbler……………...50-400mm
6 Dimension of common used grinding wheel……………………………Φ400×Φ25.4mm
7 Rotate speed of main axis………………………………………………..3650 r/min
8 Power of main motor………………………………………………………N=3KW
9 Motor power of work table………………………………………………..N=0.37KW
10 Power of the maximal rising height of tumbler………………………..N=0.37KW
11 Operation power…………………………………………………………0.4～0.6Mpa
12 Appearance dimension
(L×W×H)...............................................3280×2400×2850mm
13 Machine bed weight…………………………………………………1300kg
