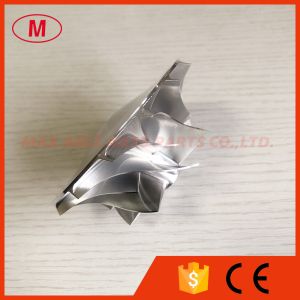

HX40 3599593 56.00/83.03mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel

1. MODEL:HX40 forward

2. HX40 3599593 56.00/83.03mm 7+7 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel for 3534921/4035626/3532494/3597501

Size:

Nose diameter:13.91mm

inducer:56.00mm

Exducer:83.03mm

Tapered tip exducer:88.22mm

Tip height:5.50mm

Superback:5.01mm

Bore size:7.00mm

Blade height:32.86mm

cutback:0.00

splitter height:21.85mm

sp height angle:-9.40

Overall height:39.76mm

7+7 blades

Bore type:through

trailing angle:60 degree

Tapered tip angle:30 degree

it is for OE compressor housing

4.High quality and competitive price.

5.Any questions please send email to me.

6.Application:

3534921

4035626

3532494

3597501

All the compressor wheels have been balanced.

we can produce as your requirement ,the minimun order is 5pcs

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
