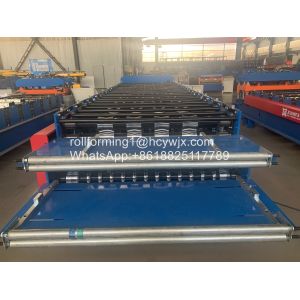

    Sheet Metal Forming Machine

    Ask Lasest Price
    Brand Name : HC
    Model Number : HC30/18
    Certification : ISO
    Price :
    Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
    Supply Ability : 20 sets/month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    Sheet Metal Forming Machine

    1. Specification of the material

    1Suitable MaterialPI/ PPGI
    2Width of the raw material1200mm
    3Thickness0.3-0.8mm

    2. Machine Detailed Parameters

    1

    Roll Forming Machine


    HC30/18
    2

    Machine structure


    Guide pillar structure
    3Total power

    Motor power-4kw

    Hydraulic power-4kw

    4

    Roller stations


    Up layer- 11 stations

    Down Layer-12 stations

    5

    Productivity


    0-15m/min
    6

    Drive system


    By chain
    7

    Diameter of shaft


    ¢70mm solid shaft
    8

    Voltage


    380V 50Hz 3phases (Customized)
    9

    Color Of The Machine


    Bule and yellow
    10

    Deliver time


    50 days
    11

    Terms Of Payment


    30%T/T 70% pay before shipment

    3. Reference pictures

    4. The Chart of Process Flow

    Hydraulic Decoiler—Roll Forming—Cutting—Auto Stacker

    Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler 15m/min

    5. Specification of Components

    (1) 5T Hydraulic Un-coiler

    • Width of feeding: 1250mm
    • Capability: 5 Ton
    • Inter diameter: 470-520mm
    • Maximal out diameter: 1500mm
    • Main motor power: 5.5KW AC motor
    • Hydraulic power: 4kw

    (2) Main Roll Forming Machine

    • Roller material:ASTM1045 chrome plated surface with chrome
    • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
    • Main frame by 350H beam welding
    • Machine structure: guide pillar

    (3) Hydraulic Cutting System

    • Cutting after forming: Cut the sheet after roll forming to required length
    • Material of blade:Cr12, 58-62 HRC hardness
    • Cutting power by hydraulic,5.5KW
    • Working pressure: 12Mpa adjustable
    • Length measuring: Automatic encoder length measuring
    • Tolerance of length: +/- 1.5mm for each piece end product

    (4) Computer Control Cabinet

    • Programmable setting of profile length and quantity
    • Operating system language: English and Chinese
    • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
    • PLC: Panasonic or customerization

    (5) Auto Stacker

    • Run out motor power: 0.75KW
    • Max stacking length: 6m
    • Max stacking thickness: 300mm
    • Max stacking weight: about 2.5 tons
