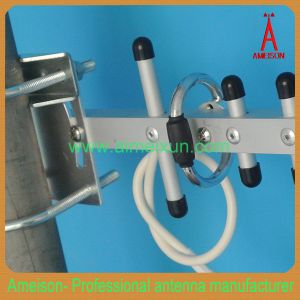

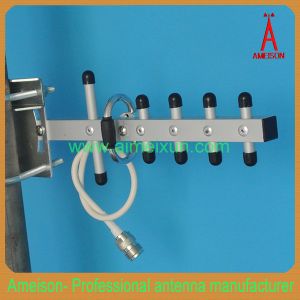

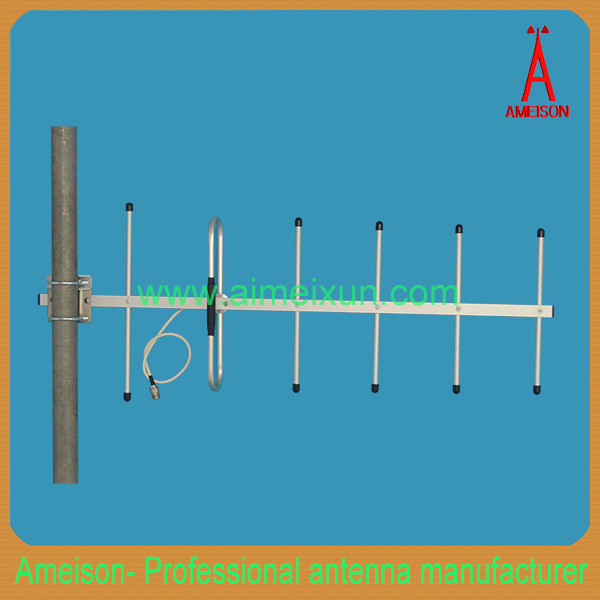

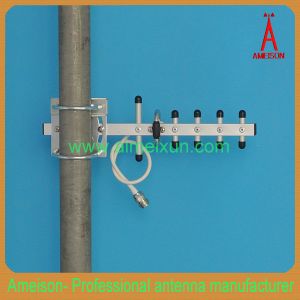

    450-470MHz 12dBi DVB-T yagi antenna

    Ask Lasest Price
    Brand Name : AMEISON
    Model Number : AMXY-450-470-12
    Certification : RoHS and REACH Compliant by Exemption
    Price : FOB SHENZHEN
    Delivery Time : 10 days
    Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal
    Supply Ability : 80,000 Pieces per Month
    • Product Details
    • Company Profile

    450-470MHz 12dBi DVB-T yagi antenna

    DVB-T yagi antenna:

    450MHZ CDMA System

    16dBi

    450MHZ Wireless Access system

    Direct manufacture price

    Model NO

    AMXY-450-470-12

    Electric Spec

    Frequency rang-MHz

    450-470

    Bandwidth -MHz

    20

    Gain -dBi

    12

    element

    6

    beam width -°

    H:42 V:38

    F/B Ratio-dB

    ≥16

    VSWR

    ≤1.5

    Input Impedance-Ω

    50

    Polarization

    Horizontal or Vertical

    Max power -W

    100

    Lightning protection

    DC ground

    Connector model

    N female or others

    Mechanical Specification

    Size -mm

    870*340*80

    Cable length-m

    0.3

    Antenna weight-kg

    0.52

    Working Temperature -°c

    -40~60

    Rated Wind Velocity-m/s

    60

    Clamp

    U

    Pole diameter -mm

    Φ40~Φ50
