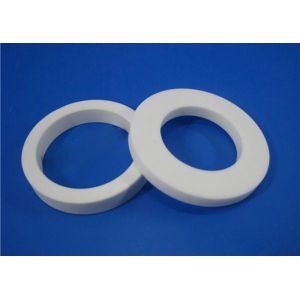

Customized Size Ceramic Mechanical Seal / Precision Ceramic
Machining
Advantages:
1). Excellent insulation, security, long working life.
2). High temperature resistance
3). Resistance to electric breakdown
4). Stand wear and tear
5). High strength
6). Corrosion resistance
7). Good compactness
8). HIgh hardness
Product Description
Low Coefficient Of Friction Ceramic Mechanical Seal Laser Equipment
Outer diameter OD |
|---|
| 7 to 80 mm |
Thickness TH |
|---|
| 1.0 to 40mm |
Material Properties:
| 95% Alumina | 99% Alumina | Zirconia | Silicon carbide | Silicon nitride | Aluminum nitride | Machinable ceramic |
| Colour | white | Light yellow | white | black | black | gray | white |
| Density (g/cm3) | 3.7g/cm3 | 3.9g/cm3 | 6.02g/cm3 | 3.2g/cm3 | 3.25g/cm3 | 3.2g/cm3 | 2.48g/cm3 |
| Water Absorption | 0 % | 0 % | 0 % | 0 % | 0 % | 0 % | 0 % |
| Hardness(HV) | 23.7 | 23.7 | 16.5 | 33 | 20 | - | - |
| Flexural Strength(MPa) | 300MPa | 400MPa | 1100MPa | 450MPa | 800MPa | 310MPa | 91MPa |
| Compressive Strength(MPa) | 2500MPa | 2800MPa | 3600MPa | 2000MPa | 2600MPa | - | 340MPa |
| Young's Modulus Of Elasticity | 300GPa | 300GPa | 320GPa | 450GPa | 290GPa | 310~350GPa | 65GPa |
| Poisson's Ratio | 0.23 | 0.23 | 0.25 | 0.14 | 0.24 | 0.24 | 0.29 |
| Thermal Conductivity | 20W/m°C | 32W/m°C | 3W/m°C | 50W/m°C | 25W/m°C | 150W/m°C | 1.46W/m°C |
| Dielectric Strength | 14KV/mm | 14KV/mm | 14KV/mm | 14KV/mm | 14KV/mm | 14KV/mm | 14KV/mm |
| Volume Resistivity(25ºC) | >1014Ω·cm | >1014Ω·cm | >1014Ω·cm | >105Ω·cm | >1014Ω·cm | >1014Ω·cm | >1014Ω·cm |
This data is typical for laboratory testing and the actual
characteristics of a particular production batch may vary.
Machining Accuracy(1) Axis: roundness 0.002 mm, concentricity 0.002 mm, smoothness
Ra0.1;
(2) Hole: the minimum processing hole diameter is 0.2 mm and the
depth is up to 6 mm (depending on the material);
(3) Slot (seam): a minimum of 0.1 mm narrow groove, and grooves of
various shapes;
(4) Plane: 0.1MM sheet with minimum processable thickness,
parallelism 0.001mm, measurement tolerance 0.001 mm, finish Ra0.1;
(5) Thread: The minimum Machinable M2 internal thread, the accuracy
of GB-7h, the external thread size is not limited, the accuracy is
GB-6g.
Industrial Ceramic Intriduction
Aluminium Oxide, Al2O3 is the most widely applied and cost
effective technical ceramic material. It offers a combination of
superior mechanical strength and electrical properties, wear
resistance and corrosion resistance. The maximum working
temperature is up to 1700 °C with relatively high thermal
conductivity. It is also an electrically insulating material with a
high electrical resistivity. The good corrosion resistance makes it
insoluble in water and slightly soluble in strong acid and alkaline
solution.
Company Introduction
Mingrui ceramic manufacture and provides alumina ceramic components
for a wide range of application like Mechanical Equipment,
Electronic & Electrical, Oil Drilling, Medical, Chemical Industry
etc. According to actual application and customer's requirement,
the purities vary from 95%-99.7% and the forming methods will be
different. The forming methods applied in our plant include dry
pressing, isostatic pressing, injection moulding, extrusion
moulding. With experienced engineers and talented workers, we are
confident to offer high quality, high precision, complex components
for customers worldwide.
Delivery:
Custom OEM will be shipped within 15 days after determining the
parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the
ceramic plates, please contact us or email:admin@cerampart.com
CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
