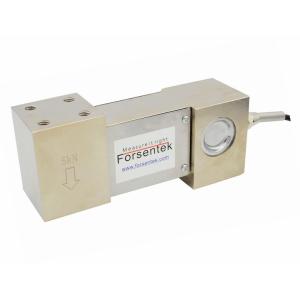

    Load cell sensor|Weight transducer|hopper scale load cell

    Ask Lasest Price
    Brand Name : Forsentek
    Model Number : FHF
    Delivery Time : 3~25 working days
    Payment Terms : T/T,Western Union or Paypal
    Supply Ability : 8000pcs/month
    • Product Details
    • Company Profile

    Load cell sensor|Weight transducer|hopper scale load cell

    Load cell sensor|Weight transducer|hopper scale load cell

    hopper scale load cell
    Features

    • Alloy steel constructure
    • Strain gauge technology,temperature compensated,high accuracy
    • Corner trimmed for platform sizes up to 600*500mm
    • Integrated with mounting platform,easy to install
    • Widely used for hopper scales,batch weighing systems,platform scales,etc.

    Dimensions
    load cell sensor
    load cell sensor
    Specifications

    Rated capacity50kg 100kg 200kg 300kg 500kg 1000kg
    Rated output2.0mV/V
    Excitation5-15V
    Zero balance±2% R.O.
    Non-linearity±0.02% R.O.
    Hysteresis±0.02% R.O.
    Non-repeatability±0.02% R.O.
    Creep(30min)±0.02% R.O.
    Safe overload150% F.S.
    Ultimate overload200% F.S.
    Compensated temp.-10...+40oC
    Operating temp.-20...+60oC
    Temp. shift on zero±0.02% R.O./10oC
    Temp. shift on span±0.02% R.O./10oC
    Input resistance380±30 ohms
    Output resistance350±5 ohms
    Insulation resistance>5000M ohms
    Ingress protectionIP65
    Material of elementAlloy steel
    CableØ5*2000mm
    Wiring codeRed--E+ Black--E- Green--S+ White--S-


    Load cell sensor for hopper scales
    load sensor
