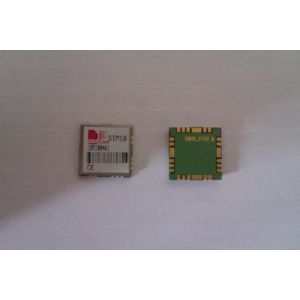

    The smallest GPS module with SIRF 4 chipset SIM18 from SIMCOM

    Ask Lasest Price
    Brand Name : SIMCOM
    Model Number : SIM18
    Certification : CE,ROHS,
    Price : 8$~9$/pcs
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 3-5 working days after receiving the payment
    • Product Details
    • Company Profile

    The smallest GPS module with SIRF 4 chipset SIM18 from SIMCOM

    The smallest GPS module with SIRF 4 chipset SIM18 from SIMCOM


    Introduction :

    SIMCom presents an ultra compact and reliable GPS module-SIM18. This is a standalone L1 frequency GPS module in a SMT type and it is designed with SiRF4 high sensitivity navigation engine, which allows you to benefit from small dimensions and cost-effective solutions


    Product Description

    The smallest GPS module with Sirf 4 chipset
    Performance data
    Receiver type 48-channel SiRF4 engine
    GPS L1, C/A Code
    Max. Update rate 1Hz
    Sensitivity1
    Tracking: -161 dBm
    Reacquisition: -160 dBm
    Cold starts: -147 dBm
    Time-To-First-Fix2
    Cold starts: 35 s (typical)
    Hot starts: 0.6 s (typical)
    Accuracy
    Position3: 2.5m CEP
    Speed4: <0.01m/s
    Operational limits
    Velocity: <1850km/h
    Altitude: <18288km
    Operation temperature: -40° C to +85 ° C
    Electrical data
    Power supply 1.71V to 1.89V
    Backup power 1.71V to 1.89V
    Power consumption2, 5
    Acquisition 45mA (average)
    Tracking 40mA (average)
    Sleep 18μA(average)
    Antenna type Active and passive
    Antenna power External or internal VCC_ANT

    1Demonstrated with a good active antenna
    2All SV @-130 dBm
    350% 24 hr static, -130dBm
    450%@ 30m/s
    5@1.8V with a passive antenna

    Mechanical data
    *Dimensions: 11*11*2.2mm
    *Weight: 0.5g

    Interfaces
    *Serial interfaces UART, SPI or I2C Additional master mode I2C
    *Digital I/O -1 NReset
    -1 EINT0 input
    -1 ON_OFF input
    -1 WAKEUP output
    -1 time pulse
    *Protocols NMEA, OSP

    Performance data
    *Receiver type 48-channel SiRF4 engine
    GPS L1, C/A Code
    *Max. update rate 1Hz
    *Sensitivity1
    -Tracking: -161 dBm
    -Reacquisition: -160 dBm
    -Cold starts: -147 dBm
    *Time-To-First-Fix2
    -Cold starts: 35 s (typical)
    -Hot starts: 0.6 s (typical)
    * Accuracy
    -Position3: 2.5m CEP
    *Speed4: <0.01m/s
    *Operational limits
    -Velocity: <1850km/h
    -Altitude: <18288km
    *Operation temperature: -40°C to +85 °C

    Electrical data
    *Power supply 1.71V to 1.89V
    *Backup power 1.71V to 1.89V
    *Power consumption2,5
    -Acquisition 45mA (average)
    -Tracking 40mA (average)
    -Sleep 18μA(average)
    *Antenna type Active and passive
    *Antenna power External or internal VCC_ANT

    Support product
    *SIM18 EVB KIT with USB V2.0 full speed interface

    Certificate
    *CE
    ————————————————————
    1.Demonstrated with a good active antenna
    2.All SV @ –130 dBm
    3.50% 24 hr static, -130dBm
    4.50%@ 30m/s
    5.@1.8V with a passive antenna.


    SIM18 EVB KIT with USB V2.0 full speed interface
