Heat Insulation PEF Battery Storage Cabinet Outdoor Rack Enclosure
3 Shelves Cooling
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Size H×W×D 1750×750×750mm Internal Size H×W×D 1400×650×650mm |
| Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure |
| · Model Number: ET7575175-BA | Cabinet Layout: one compartment, for installing batteries |
| Product Name: Outdoor Battery Cabinet | Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Inlet: at cabinet bottom |
| Material: galvanized steel | Illumination: DC48V LED lamp |
| Heat Insulation: PEF | Grounding Protection: copper bar |
| Color: grey (support custom made) | Cooling: DC48V peltier air conditioner and DC48V Fans |
| Coating: anti-corrosion outdoor powder coating | Other Cooling Options: heat exchanger, compressor air conditioner |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 5,500 sets per month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Size H×W×D 1750×750×750mm Internal Size H×W×D 1400×650×650mm |
| Layout | One compartment |
| Installation Method | Battery shelves |
| Door | With one front door; with anti-theft three point lock for outdoor
cabinet (support padlock) |
| Material | Galvanized steel; sandwich structure, double walls, with heat
insulation between two walls. Outer plate thickness: 0.5mm, inner
plate thickness: 0.5mm, insulation: 45mm. |
| Structure | Assembled |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | DC48V Peltier air conditioner and DC48V fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Battery Cabinet | 1 | Set | (1) External Size H×W×D 1750×750×750mm Internal Size H×W×D 1400×650×650mm. (2) One compartment; (3) With one front door; with anti-theft three point lock for
outdoor cabinet (support padlock) (4) Galvanized steel; sandwich structure, double walls, with heat
insulation between two walls. Outer plate thickness: 0.5mm, inner
plate thickness: 0.5mm, insulation: 45mm |
| 2 | Air Conditioner | 1 | Set | DC48V 100W Peltier air conditioner |
| 3 | Fan | 1 | PC | 12025, DC48V |
| 4 | LED Lamp | 1 | PC | DC48V |
| 5 | Door sensor | 1 | PC | Control LED on/off. When cabinet door is open, the LED lamp will
automatically turn on; when cabinet door is closed, the LED lamp
will automatically turn off |
| 6 | Package | 1 | Set | Wooden Case |
Cabinet Diagram:
2. Description
The battery cabinet is one compartment cabinet. The cabinet cooling
use DC48V peltier air conditioner and auxiliary ventilation fans,
to ensure batteries work normally at stable temperature range, so
as to make the service life of the batteries much longer and their
performance more stable.
2.1 Cabinet Material
The cabinet is made of galvanized steel, with double walls,
thickness of outer plate: 0.5mm, thickness of inner plate: 0.5mm.
There are heat insulation between inner wall and outer wall. The
insulation material is 45mm PEF, heat insulation coefficient:
0.035W/m·K. The cabinet is assembled type.
2.2 Cabinet Structure
The cabinet includes battery shelf. The cabinet includes one
peltier air conditioner and one fan, installed on front door.
2.3 Cabinet Door and Lock
The cabinet includes one front door. The cabinet door uses embedded
structure. The door opening angle is larger than 110°and the door
limit device can limit the opening angle. The lock is theftproof
three point lock, supporting padlock.

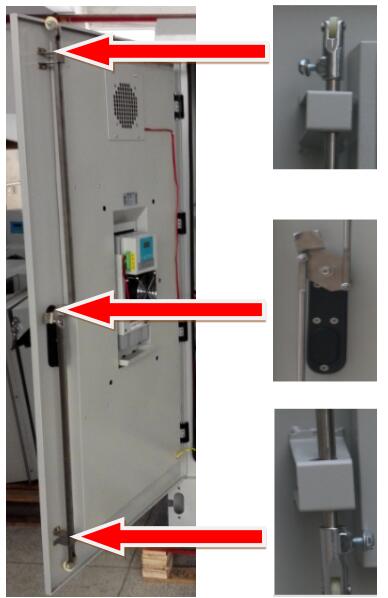

2.3.1 Door lock theft proof design
- Damage resistance of the theft proof lock meets GA/T 73-1994
“Mechanical Anti-theft Lock” class B requirement, supporting
padlock.
2.4 Cable Inlet
Feeder cable and other external cables all use bottom wiring
method.
2.5 Grounding Protection

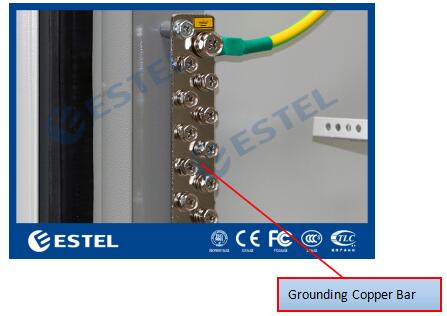

- The cabinet includes grounding copper bar with anti-corrosion
coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be
connected with grounding bar. Connection resistance between any two
points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should
be connected to the grounding bar.
2.6 Connection and Fastening
- Use anti-loose threaded connection as structure and bearer
connection. Anchor bolt for fixing cabinet use hot dip galvanized
bolts.
- Door hinges use inner hinge mode.
2.7 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with
white gray color (PANTONE 428C). The coating complies with GB/T
3181-2008 requirement.
3. Applications
The ET7575175-BA Outdoor Telecom Equipment Cabinet is mainly used
in wireless communication base station, such as 4G system,
communication/network integrated service, access/transmission
switching station, emergency communication/transmission, etc.
