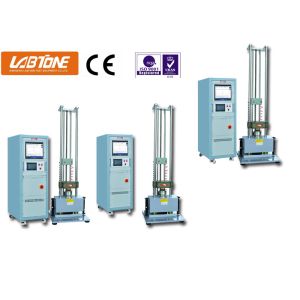

HSKT10 Customized Shock Test System For Consumer Electronics LABTONE

Name: HSKT10 Customized Shock Test System For Consumer Electronics LABTONE
Brand: LABTONE
Price: 1 USD

Ask Lasest Price
Brand Name :	LABTONE
Model Number :	HSKT10
Certification :	CE, ISO
Price :	Negotiable
Payment Terms :	T/T
Delivery Time :	45 working days
Supply Ability :	15 Sets / Month

Add to Cart

Product Details
Company Profile

HSKT10 Customized Shock Test System For Consumer Electronics LABTONE

HSKT10 Customized Shock Test System For Consumer Electronics LABTONE

Product description

The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.

Specifications

Model	HSKT10	HSKT10D
Table size (mm)	200 x200	210 x 210
Specimen max weight(kg)	10	10
Shock pulse	Half-sine
Acceleration range (m/s2)	20----1500	20----10000
Pulse duration range (ms)	0.5~11	0.2~11
Seismic base	Pneumatic springs device
Utility reqyurements	AC220V 50Hz 5A Air pressure:more than 0.5Mpa

Product Option Highlights

Customized table mounting patterns available
Dual Mass Shock Amplifiers to generate extremely high acceleration levels (10,000g+)
Additional Shock Pulse Programmers for short and long duration half sine, trapezoidal, and terminal peak sawtooth shock pulses
Test Partner Data Acquisition and instrumentation for data collection and analysis

Features

While a non-repetitive mechanical shock environment is encountered, find out the mechanical weakness and decay of specific functions. Basically simulate the consequence of random shock possibly encountered during transporting or operation process. While running a shock test, normally fix the specimen on fixture or testing table; wave model frequently selected per specification is the half-sine wave.
