Heavy Duty EPS CNC Cutting Machine 1325 CNC Router For Wood Working

    Buy cheap Heavy Duty EPS CNC Cutting Machine 1325 CNC Router For Wood Working from wholesalers

    Buy cheap Heavy Duty EPS CNC Cutting Machine 1325 CNC Router For Wood Working from wholesalers
    • Buy cheap Heavy Duty EPS CNC Cutting Machine 1325 CNC Router For Wood Working from wholesalers

    Heavy Duty EPS CNC Cutting Machine 1325 CNC Router For Wood Working

    Ask Lasest Price
    Brand Name : BLUE ELEPHANT
    Model Number : ELE1325
    Certification : CE, ISO9001, SGS, CIQ
    Price : US $9,999 - 19,999 / Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 Set/Sets per
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

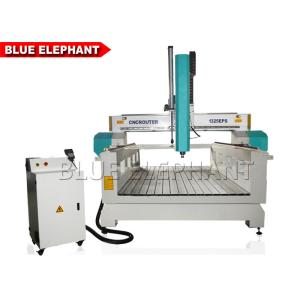

    Heavy Duty EPS CNC Cutting Machine 1325 CNC Router For Wood Working

    Ele 1325 Wood Working CNC Router, Wood EPS Foam Cutting Machine for Sale


    Product Description

    Parameters:


    DescriptionParameter
    X,Y,Z Working Area1300x2500x700 mm
    FrameDivided structure bed structure ,Fixing with screws
    X,Y StructureHelical rack gear , 4pcs HIWIN #30 Linear guide
    Z StructureTBI ball screw,6 pcs slider for z axis
    Max. Power Consumption(Without Spindle) 6Kw
    Spindle PowerItaly HSD spindle 7kw
    Spindle Speed0-18000RPM
    Drive MotorsJapan 1.5W YASKAWA
    Working VoltageAC380V/50/60Hz,3PH (Option: 220V))
    InverterE-type 7.5kw Taiwan Delta Inverter
    Operating SystemDSP A11
    Computer InterfaceUSB
    Flash Memory512M
    ColletER32
    X,Y Resolution<0.01mm
    Software CompatibilityUG,Power mill
    Running Environment Temperature0 - 45 Centigrade
    Relative Humidity30% - 75%
    Command LanguageG Code

    Features:


    1. Effective working area :1300x2500x700mm

    2, Italy HSD brand air cooling spindle: 7kw

    3, #30 Taiwan HINWIN linear guide

    4. Taiwan DELTA inverter:7.5kw,E-type

    5, Japan YASKAWA servo driver 1.5KW

    6, DSP A11 3 axis control system

    7, Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel

    8, Taiwan TBI ball screw with high precision

    9, Divided structure bed structure ,Fixing with screws

    10, Double sides seperate control box.

    11, Omron limit switch


    Main parts:

    Application:


    Ideal for automobile mold industry, suitable for EPS foam, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials .
