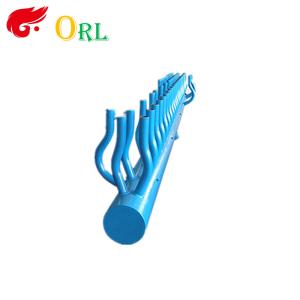

High Temperature Boiler Header Manifolds with Boiler Manifold
Piping
Boiler Header Manifolds
Introduction:
Steam header is a necessary device for steam boiler. It is mainly
used for power generation, iron and steel industry, oil and
chemical industry, cement industry, and construction industry, etc
The boiler headers have water wall header, superheater header,
economizer header and so on. It acts as collection, mixture,
re-distributing working medium. As the structure, it can be
classified as the end cover type ( end enclosure) and necking down
type.
Headers collect and distribute steam or water from or to a series
of smaller pipes or conduits. They are made of carbon or ferritic
steel, generally of the same grade as the piping systems. Unlike
piping systems which are usually butt welded and bent, headers are
straight.
The pressures and temperatures that headers have to withstand
depend on the component to which they are connected. A header
connected to an economizer or to water wall panels is subject to
less severe requirements on the material than a header connected to
superheaters or reheaters.
Depending on the temperature and pressure of headers, Vallourec
supplies tubes in carbon steel to high-alloy ferritic steels such
as T/P91 or T/P92, with sizes ranging from 88.9 mm to 406.4 mm.
Specification:
1. Steam header body diameter: 6inch ,8inch,10inch,12inch,and so on
2. Branch pipe:1',2',3',4',5',6' and so on.
3. pressure:1.0mpa,1.25mpa,1.6mpa,2.0mpa,2.5mpa
4. material:pressure vessel carbon steel.
Kindly tell us the steam header body size and branch size and
branch pipe numbers when you want to order this product. Thank you.
Technical Parameter:
| Body Materials | Carbon Steel(20#,20G,SA192,A-1),Alloy
Steel(15CrMoG,12Cr1MoVG,T11,T22)etc.
|
| Type | header body, end cover, tube joint, hand cole, thermometer
socket;seamless steel tube, pressure parts |
| Advantages | advanced welding, safe and reliable operation |
| Working Pressure | Depend on material |
| Standard | China GB, ASME |
| Dimension | Customization |
| Welding | SMAW, SAW,GTAW (TIG) |
| Manufacturing process | Material→Ingot → Hot/Cold-Rolling→ Heat treatment (Normalizing+
tempering) → Inspection →Drilling→Welding→RT, PT→ Inspection →Heat
treatment →Hydraulic pressure test→Painting→Packaging |
| Remarks | Customized order is also accepted. |
Company Introduction
Suzhou ORL Power Engineering Co., Ltd.is located in Suzhou, Jiangsu
Province.
ORL Power is a leading company and exporter of industrial
boilers,power plant boilersand boiler parts (including steam drum,
membrane waterwall panel,header,economizer, evaporator,
superheater,H-fin economizer, spiral fin tube, air preheater, heat
pipe, flue etc.), seamless steel tubes/pipes and ERW steel
pipes.ORL provides our customer with full range of services
including boiler design, fabrication, installation and
commissioning, boiler maintenance, and supervision at site. Our
product and service include design and manufacture industrial
boilers, pressure vessels and tanks, and pressure parts for power
plant boilers (600MW, or 1000MW).
Product Description
Testing Center
Workshop
Certifications
Packing& Shipping
Company Buisiness
Trading Process
FAQ
1. Why choose us?
We are boiler and boiler parts(boiler drum, boiler waterwall panel,
boiler economizer, boiler header, boiler cyclone separator, boiler
flue pipe, boiler air preheater, boiler pipe, boiler
tube)manufacture and we are one of the best suppliers in China.
We ensure the deliver time, high quality, and the best after-sale
service for you.
2. How to order?
Welcome come to our factory for inspecting and discussion the
technical details.
